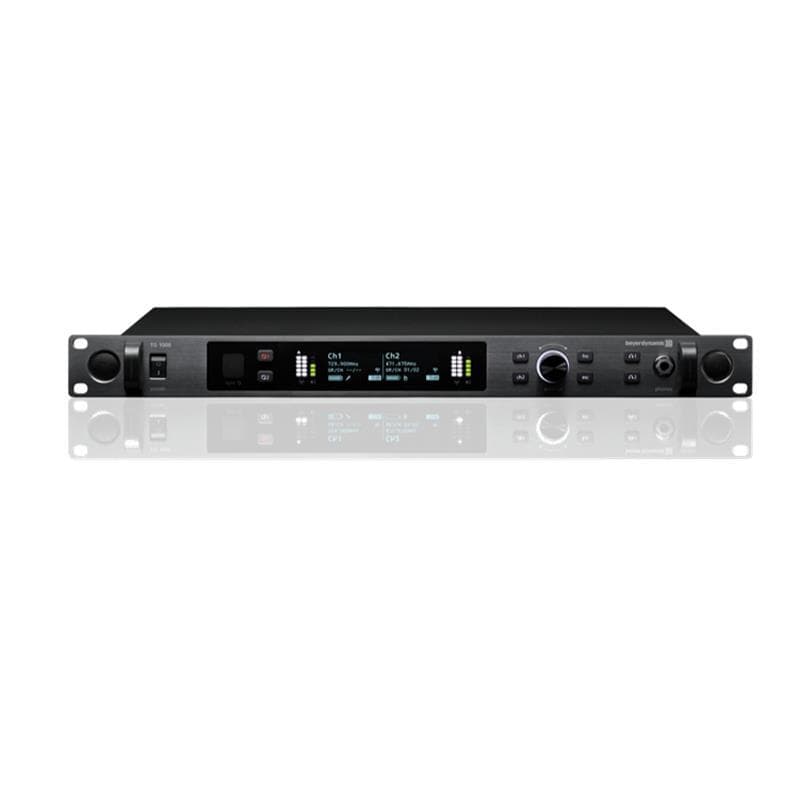

beyerdynamic TG 1000 A - Trådløs mottaker

TG 1000 digital 2-kanals trådløs mottaker region A: 490 - 789MHz 19 1RU Metall hus Integrert strømforsyning Ethernet interface OLED display  6 to-kanals mottakere kan loopes uten antennesplitterKontroll protokoll finner du på denne lenken Digital Transmission UHF-Wide Band 470MHz - 789MHz One system „for the whole world Encrypted Data Transmission available Very low Latency 2.1ms Standard RJ45 Ethernet Port with option for remote control via Crestron/AMX Up to than 150 channels can be operated simultaneously with one hardware using the whole bandwidth of 319MHz Operating software integrated in Receiver (webserver concept)   True-Diversity-Receiver     2 Outputs (XLR and phones jack) Ethernet-Interface (TCP/IP) Headphone Output for Monitoring Loop-Through Antenna Inputs Transmitter programming via IR (bi-directional) Integrated Power Supply Unit Front-mountable antenna socket Illuminated control elements TECHNICAL SPECIFICATIONSOperating principle: Digital UHF true diversity receiverFrequency rangeRegion A: 470 – 789 MHzFrequency response: 20 – 20000 HzDynamic range: 116 dB (128 dB with -12 dB level decrease in thebeltpack transmitter)Output level: max. + 18 dBu balanced(XLR and jack output)0 to 42 dB digital gain+ 12dB analogue boostOutput impedanceJack output: 120 OAntenna input: 8 V DC 150 mAHeadphone output: switchable with volume controlLatency: 2.1 ms (overall latency fromtransmitter to receiver)Encryption & Audio CODED: Switchable proprietary encryption scheme basedupon a 16 bit pattern“Triple-Play” CODEC with low latency and high error resilienceDisplay: OLEDMains connection: 100 V – 240 V ACPower consumption: 13.8 W (typ.)Weight: 3200 gDimensions: 420x242x43 mmAntenna connection: 2 x BNC input/ 2 x BNC output
