minidsp DSP Kit 2x4HD Ekstern

miniDSP

Kort om produktet

NB! Husk at du trenger en kalibrert målemikrofon for å gjøre de nødvendige målinger, vår anbefaling er UMIK-1 fra miniDSP.NB! 1stk plugin medfølger i form av en kupongkode som lar deg bestille 1stk plugin på www.miniDSP.com gratis.Du kan ogsåLes mer om produktet
Dette produktet er ikke på lager

NB! Husk at du trenger en kalibrert målemikrofon for å gjøre de nødvendige målinger, vår anbefaling er UMIK-1 fra miniDSP.


NB! 1stk plugin medfølger i form av en kupongkode som lar deg bestille 1stk plugin på www.miniDSP.com gratis.


Du kan også velge å senere oppgradere din 2x4HD til Dirac Live, et av verdens beste automatiske systemet for automatisk kalibrering. Dette kjøper du bare direkte fra miniDSP.com: https://www.minidsp.com/products/dirac-series/2x4hd-to-ddrc-24.


Her er en god video som viser hvordan du benytter miniDSP og REW for korreksjon av multiple subber fra A-til-Å.



Informasjon fra produsent

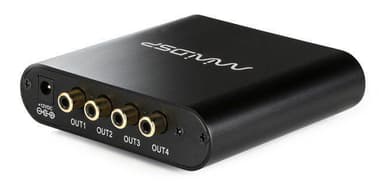

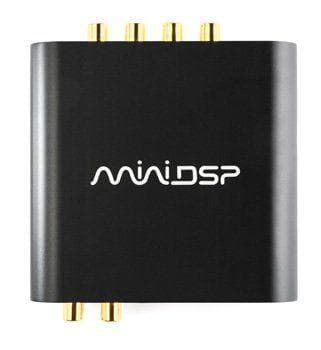

MiniDSP 2x4 HD, a USB DAC+DSP in a low cost package powered by a powerful Sharc 400MHz floating point DSP


Introducing the long-awaited “reboot” of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!


The upgraded on-board 400 MHz Analog Devices SHARC processor also ena-bles substantial processing upgrades previously available only on more ex-pensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software.

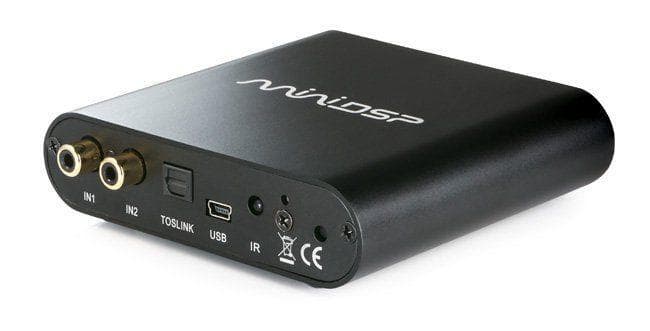

I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.


Features

  • ADSP21489 400MHz Sharc DSP floating point engine

  • XMOS Xcore200 for USB control and bidirectional audio streaming

  • 24 bit ADC/DAC resolution

  • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms

  • Toslink digital input

  • Unbalanced outputs: Max 2Vrms

  • USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx

  • 4 preset configuration, recallable via IR, Software

  • Plug&Play USB driver and real time Software configuration using miniDSP plug-ins

  • Device does not required a PC once configured

  • External single 12V supply





Product Downloads

  • miniDSP 2x4 HD Datasheet

  • miniDSP 2x4 HD User Manual


Software plug-in to be purchased separately

  • miniDSP 2x4 HD1 plug-in


What's in the box?

  • 1 x MiniDSP 2x4 HD, board assembled and ready to use

  • 1 x 12V power supply with UK/EU/US/AU plugs

  • 1 x shielded USB cable


Optional Accessories

  • UMIK-1, unique calibration file mircophone for accurate acoustic measurements

  • miniDC for Car Audio

  • Audio RCA cables


Comparing features




miniDSP 2x4
miniDSP 2x4 HD







28/56bit Fixed point DSP Engine








ADSP12489 400MHz Sharc floating point DSP










24 bit ADC/DAC resolution








24 bit ADC/DAC resolution










Unbalanced analog audio inputs switchable with a jumper between 0.9Vrms and 2Vrms








Unbalanced analog audio inputs switchable with a jumper between 4Vrms and 2Vrms










Digital I/O: I2S in/out








Digital I/O: USB audio I/O, Toslink input (44.1~192kHz), I2S I/O (not enabled yet)










Unbalanced analog audio outputs: Max 0.9Vrms








Unbalanced analog audio outputs: Max 2Vrms










Plug&Play USB driver and real time Software configuration using miniDSP plug-ins








Plug&Play USB driver and real time Software configuration using miniDSP plug-ins










N/A








Asynchronous USB Audio Class 2 Bidirectional streaming with ASIO drivers under Windows, driverless under MAC OSx










Device does not required a PC once configured








Device does not required a PC once configured










Software: miniDSP 2x4 plug-ins
