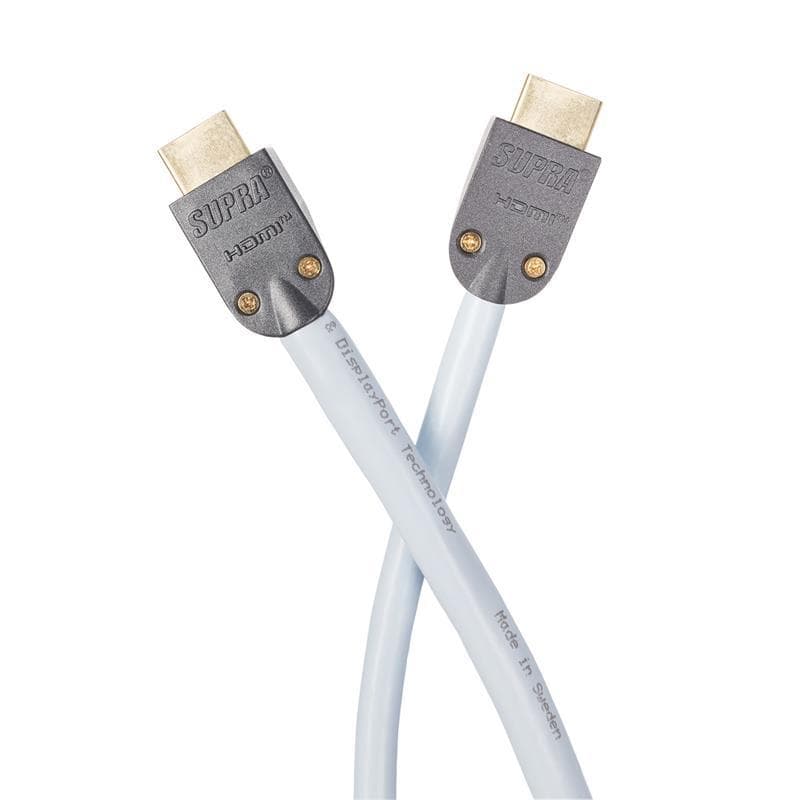

Supra kabel HDMI-HDMI Halogenfri 25M 1080p 3D Ethernet High Speed

Supra kabel HDMI-HDMI Halogenfri 25M 1080p 3D Ethernet High Speed

Supra kabel HDMI-HDMI Halogenfri 25M 1080p 3D Ethernet High Speed

Dette produktet er ikke rangert enda. 0
Dette produktet er ikke på lager

Kort om produktet

Supra CablesLes mer om produktet
Mer informasjon
HDMI-HDMI HD A/VHDMI HD A/V HD5/S slim cable (7mm)HDMI High Speed with Ethernet CableHDMI cables 0.5m to 5m is assembled with HD5/S slim cable.The cable to the right of the pictureHDMI HD A/V HD5 cable (9.5mm)HDMI High Speed with Ethernet CableHDMI cables 6m to 30m is assembled with HD5 cable.The cable to the left of the pictureFrom the start and on we have delivered trustworthy HDMI cables hence our reputation on the installation market where we supply large quantities to hotels conference facilities and similar and where no one overlooks sub-standard performance. Nine years of continuous product development has resulted in the Supra HD5 HDMI Met-S/B which (according to us) is the best passive HDMI cable there is offering HDMI High Speed with Ethernet & 4K resolution. We guarantee that our HD5 cable handles HDMI 1080P signals up to 32 meters - passively! We think we are alone to offer this. High Speed HDMI with Ethernet transmissionSUPRA launched its first HDMI cable in 2004. Already from the very beginning the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission a fact many customers soon found reason to doubt. When we at Supra started our development we knew how challanging this would become and left nothing to chance.We know also the burden of proof why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA - a quality assurance treat to our customers. The bandwidth of the HD5 is 1100MHz above three (< 3) times the specification of HDMI High Speed (340MHz). There are some interesting esoteric cables out there claiming to do the job but only a few are actually up for it. Supra High Speed HDMI is one.With the addition of our smart contact Supra Met-B/S the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering jeopardizing the typical Supra top notch performance. The TrickHow you get a bent and too big connector through a small conduit pipe (minimal Ø 20mm for conduit pipe and 25mm for conduit tube).1. Can you pull this connector through a conduit pipe2a. All parts are easily detachable.2b. These are the parts of the dis-assembled connector.2c. The soldered part is overmoulded for protection.3. Nylon braid is used as an aid to pull the cable through the conduit. Fasten the braid to the pulling tool with a knot.4. Picture showing how much space there is left in a 20mm pipe.5. As you can see despite the sharply bent pipe the cable got through effortlessly.6. Assembled cable and connector ready for use.SUPRA HDMI Features & benefitsTransmits today’s challenging formats flawlesslyFuture proof - Meets today’s HDMI standard and known requirements of tomorrowSturdy design - Withstand the normal installation abuseup to 23AWG leads - For minimum lossesTriple screen technology - Provides for long distance clearance hence freedom of installation with maintained signal integrityMade in Sweden three step quality plan - Unsurpassed quality and reliabilityHigh resolution picture and sound We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean it’s only a data stream? Yes it is a stream of digital bits. Yes it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays) distorted colorations insufficient blackness noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.SUPRA High Speed HDMI with Ethernet Cable (v2.0) in short: Signal Bandwidth: 1100 MHzTMDS Bandwidth: 18 Gbit/sColor Depth: 48 bit (16 bit per color channel)Maximal resolution and corresponding cable length: 4096 x 2160 @ 60 fps 1-10 meter 4096 x 2160 @ 24/30 fps <10-20m and 1080p @ 24/30 fps up to 30 meter passively!Deep Color x.v.ColorAuto Lip SyncDolby TrueHD DT-HD Master Audio3D over HDMIAudio Return ChannelEthernet ChannelTechnical InfoMechanical SpecificationsStandardHDMI 2.0 High speed with Ethernet Connection configurationSingle-Link ConnectorsHDMI-HDMI Met-S Signal directionBi-directional Included HDMI connectors2 x Supra Met-S (straight) Additional connectorsSupra Met-B (bent housing sold separately) Applications e.g.Bluray/Projector/TV/DVD/TV-decoders Max resolution per cable length interval in passive appliances4096 x 2160 @ 60 fps up to 10 meter 4096 x 2160 @ 24/30 fps up to 20 meter and 1080p @ 24/30 fps up to 30 meter Solder tinAlmit SR-34 Super Cable clampingMolded connector body fitted in aluminium housing CableSupra HD5/S or HD5 Lead area 0.5 - 5m:5xTMDS 0.128 / 26 (HD5/S)mm2 / AWGLead area 5 - 30m5xTMDS 0.26 / 23 (HD5)mm2 / AWGLead materialSolid strand oxygen-free copper Di-electric (insulation)Air-injected PE foam for minimal capacitance Inner shield / coverage:Aluminized PET foil / 100%Communication leads (HD5/S)5 x 0.081 / 28 (di-electric: PE)mm2 / AWGCommunication leads (HD5)5 x 0.129 / 26 (di-electric:PE)mm2 / AWGOuter shield / coverage:Aluminized PET foil and braid / 100%JacketHeat an age resistant PVC Flame retardancy:No see FRHF Version Cable outer dimension (HD5/S)7mmCable outer dimension (HD5)9.5mm Electrical performance - Supra HD5/SResistanceRev.Ohm / kmCapacitanceRev.pF / mCharacteristic impedance100OhmVelocity factor0.8 xC (speed of light) Electrical performance - Supra HD5Resistance82Ohm / kmCapacitance42pF / mCharacteristic impedance 100OhmVelocity factor0.8 xC (speed of light)


Vekt ink. emballasje
100,0 g
