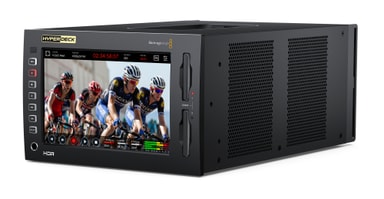

Blackmagic HyperDeck Extreme 8K HDR

HyperDeck Extreme 8K HDR  med nye plassbesparende H.265-filer, valgfri intern cache, 3D LUTs,  Native 8K og HDR-støtte.

Med muligheten til å  ta opp  8K i H.265, får du reduserte lagringsutgifter og fantastisk bildekvalitet. Den store berøringsskjermen sikrer en perfekt visning av opptaket ditt samt kontroll over alle dekkinnstillingene. Du kan deretter legge til HyperDeck Extreme Control for å forvandle den til en tradisjonell  broadcast deck.  Dette betyr at HyperDeck Extreme er den perfekte løsningen for neste generasjon av kringkasting, live produksjon og digital signage.

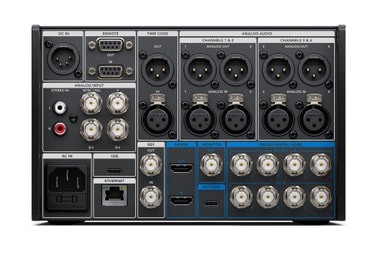

SDI Video Inputs

4

SDI Video Outputs

5    (12G-SDI A,B,C,D and 3G-SDI Monitor Out)

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Inputs

1

HDMI 2.0 Video Outputs

1

Analog Video Inputs

1 x Component YUV on 3 BNCs,
1 x Composite NTSC/PAL on 1  BNC.

Analog Video Outputs

None.

Analog Audio Inputs

4 Channels of professional balanced analog audio via  XLR connectors and 2 channels of consumer unbalanced via RCA  connectors.

Built in Speaker

Mono

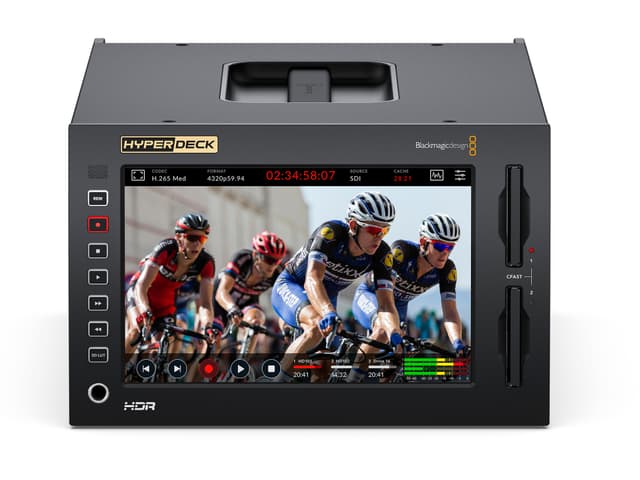

Screen

7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD

Timecode Connections

1 x XLR in and 1 x XLR out.

Reference Input

Tri-Sync or Black Burst.

SDI Audio Inputs

16 channels embedded audio.

SDI Audio Outputs

16 channels embedded audio.

HDMI Audio Inputs

8 channels embedded audio.

HDMI Audio Outputs

8 channels embedded audio.

Remote Control

1 x RS-422 In, 1 x RS-422 Out.

Recorder Configuration

Via user interface or Blackmagic  HyperDeck  Ethernet  Protocol.

Ethernet

10Gb/s

External Recording

1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.

Computer Interface

1 x USB-C for software updates.

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K DCI Video Standards

1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI
1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K DCI Video Standards

2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI

8K Video Standards

4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60

8K DCI Video Standards

4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.

SDI Metadata Support

HD RP188 and closed captioning CEA-708.  HDR Metadata supported  on SDI.

Audio Sampling

Television standard 24-bit, 48 kHz sample rate.

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu  tab.

Multi Rate Support

Auto detection of SD, HD, 6G-SDI, 12G-SDI, 2SI Quad Link 12G-SDI.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of  content.

Media

Cache Recording

Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm  supported.

Media

2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra  HD and  8K.

CFast card and external USB-C flash  drives.

Media Format

Can format media to ExFAT (Windows/Mac) or HFS (Mac) file  systems.

Supported Codecs

ProRes HQ QuickTime,  ProRes 422 QuickTime,  ProRes LT QuickTime  for all formats up to 4320p60. H.265  High, H.265  Medium, H.265  Low for all progressive formats up to  4320p60.

Scopes

Waveform, RGB Parade, Vector and Histogram scopes in broadcast  quality 10-bit.

Viewing Modes

Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with  zoom.

Computer Capture

None

Built in Control Panel

Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating  menus.

External Control

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet  Protocol.
