    ATEM Constellation 8K er en Ultra HD Live Production Switcher med så mange funksjoner, du kan kombinere dem alle for å lage en utrolig kraftig 8K switcher! Du får 4 M / Es, 40 x 12 G-SDI-innganger, 24 x 12 G-SDI AUX-utganger, 4 DVEer, 16 Key, 4 mediaspillere, 4 multi viewers, 2 SuperSource og standardkonvertering på hver SDI-inngang! Så når du bytter til 8K, kombinerer alle disse funksjonene for å lage en kraftig 8K-Mixer. Med innebygget i talkback og en profesjonell 156-kanals Fairlight audio mixer med EQ og dynamikk! Det er en lydmiksere så  avangsert at  du kan koble til og bruke en full Fairlight lydkonsoll.

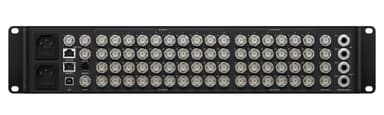

    Connections

    Total Video Inputs

    40 x up to Ultra HD / 10 x in  8K

    Total Video Outputs

    28 x up to Ultra HD / 7 x in  8K

    Total Aux Outputs

    24 x up to Ultra HD / 6 x in 8K

    SDI Rates

    1.5G, 3G, 6G, 12G

    Total Audio Inputs

    2 x balanced 1/4 inch Jack, 1 x 32 stereo channel  BNC MADI  in.

    Total Audio Outputs

    2 x balanced 1/4 inch Jack, 2 x 32 stereo channel  BNC MADI  out.

    Timecode Connections

    None

    Reference Input

    Tri-Sync or Black  Burst.

    Video Input Re-sync

    On all 40 inputs.

    Frame rate and format converters

    On all 40 inputs.

    SDI Video Inputs

    40 x 10-bit 720p, 1080i, 1080p, 2160p and  10 x 4320p switchable.

    Extra Audio Outputs

    1 x 5 pin XLR  Talkback.

    SDI Audio Outputs

    2 Ch embedded into SDI output on all  outputs.

    Extra Audio Inputs

    1 x 5 pin XLR Talkback.

    SDI Program Outputs

    Any of the 24 SDI outputs.

    Down Converted SDI Program  Output

    None

    SDI Preview Outputs

    Any of the 24 SDI outputs.

    Total Multi Views

    4 x up to Ultra HD / 1 x in 8K

    SDI Multi View Outputs

    4

    HDMI Multi View Outputs

    None

    Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via  network.

    Internal Timecode Generator

    Yes

    Tally Output

    Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not  included).

    Computer Interface

    1 x USB 2.0 port.







    Standards

    SD Video Standards

    None

    HD Video Standards

    720p50, 720p59.94
    1080i50, 1080i59.94
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94

    Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94

    8K Video Standards

    4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94

    SDI Compliance

    SMPTE  292M, SMPTE  296M, SMPTE  424M, SMPTE  425M Level  A and  B,  SMPTE 2081-1,  SMPTE 2081-10,  SMPTE 2082-1  and  SMPTE 2082-10,  SMPTE 2082-12.

    Video Sampling

    4:2:2

    Color Precision

    10-bit.

    Color Space

    REC 601, REC 709, REC 2020.

    SDI Auto Switching

    Automatically detects between level  A and level  B  3G-SDI,  6G-SDI  and  12G-SDI.  Requires 2SI in 8K  mode.

    Product Specifics

    Upstream Keyers

    16 x up to Ultra HD / 4  x in 8K with Chroma/Linear/Luma  key.

    Downstream Keyers

    4 x up to Ultra HD / 2 x in  8K.

    Advanced Chroma Keyers

    16 x up to Ultra HD / 4  x in  8K.

    Talkback Support

    Yes

    Mix Minus Support

    Yes

    Linear/Luma Keyers

    21 x up to Ultra HD / 7  x in  8K

    Transition Keyer (Stinger/DVE)

    4 Stinger, 4  DVE .

    Total Number of Layers

    28 x up to Ultra HD / 7  x in  8K

    Pattern Generators

    21 x up to Ultra HD / 9  x in  8K

    Color Generators

    2

    DVE with 3D Borders & Drop Shadow

    4 x up to Ultra HD / 1  x in  8K

    Control Panel

    Front fascia emergency switching, software or optional hardware  panel.

    Routable Windows

    64 x up to Ultra HD / 16  x in  8K

    Tally

    Red for program and green for preview  indication.

    Windows Source Labels

    Yes

    Multi View Monitoring

    Multi View Monitoring

    4 x 16 Multi View pattern options for up to 64 total  views.

    Multi View Video Standard

    Select HD, Ultra HD or  8K.

    Media Player

    Media Players

    4 x up to Ultra HD / 1  x in  8K

    Channels

    Fill and key for each media player.

    Media Pool Still Image Capacity

    64 x up to Ultra HD / 24  x in 8K with fill and  key.

    Media Pool Clip Capacity

    4 x up to Ultra HD / 2  x in 8K with fill and  key.

    Media Player Clip Length in 720  HD

    3200 frames.

    Media Player Clip Length in 1080  HD

    1600 frames.

    Media Player Clip Length in Ultra  HD

    400 frames.

    Media Player Clip Length in  8K

    100 frames.

    Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and  TIFF.

    Media Pool Video File  Format

    TGA Sequence.

    Media Pool Audio File  Format

    WAV, MP3 and AIFF.

    Display

    Interface

    Minimum monitor resolution of  1366 x 768.

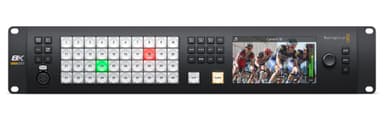

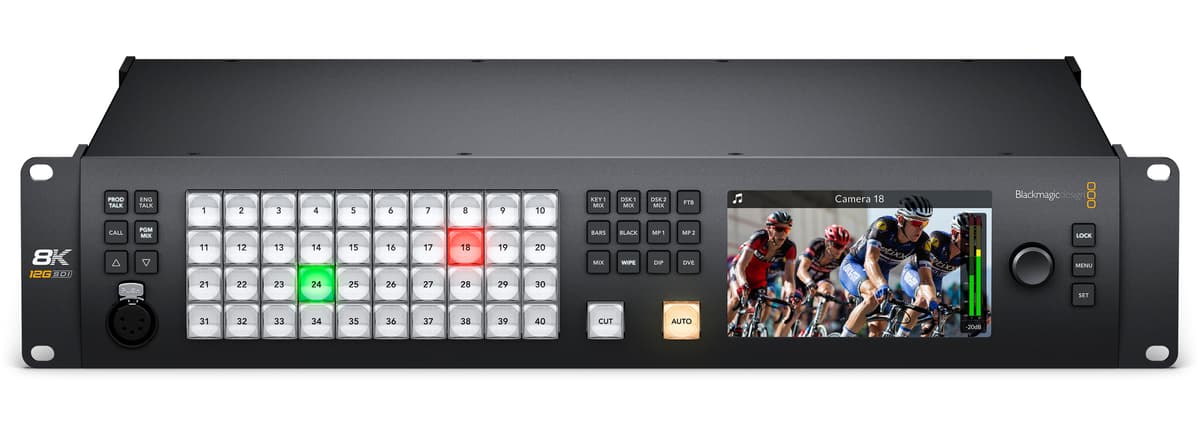

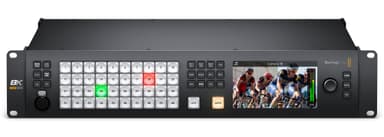

    Front panel

    Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8  source buttons, 4  transition buttons, 6  talkback selection and mix buttons, menu control knob and set button, front panel lock  button.
