RCGF 56CC CNC-Bensinmotor med CM6 plugg

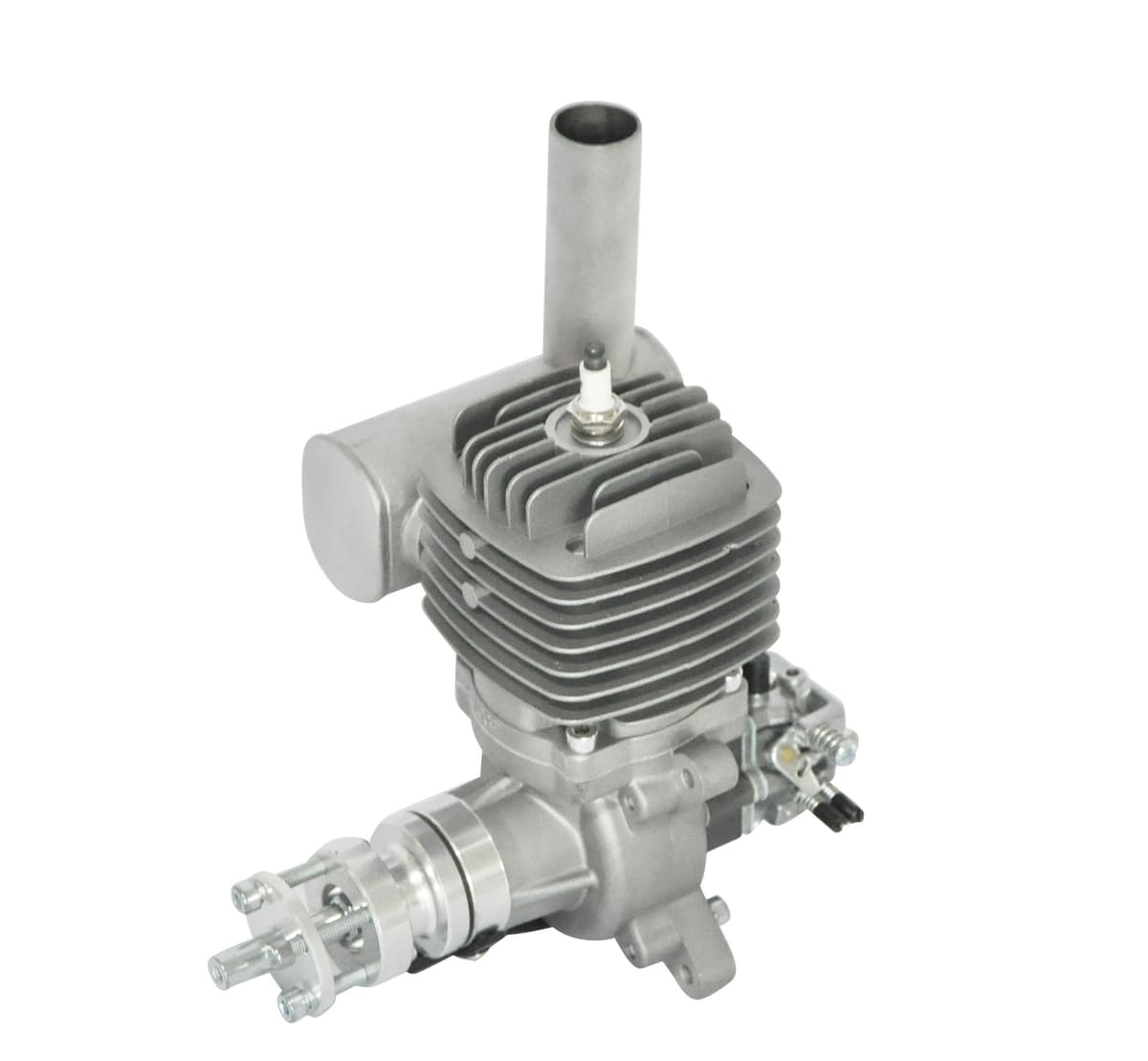

56CC bensinmotor som kan brukes på 50CC-modellfly. Her får man hele 5.6hk og motoren kan dra 22x10-propell på 6800rpm med statisk thrust på over 15kg. Den veier 1,54 kg totalt med potte og tenningsanlegg. Det følger med manual på engelsk, avstandsstykker til montering og plugg. Pluggnøkkel, drill-jig tool, umbrakotrekker og festeskruer følger også med.The RCGF 56cc screams performance, from the lightweight piston skirt that speeds throttle response to the rear exhaust design that permits easy tuned pipe installation. Ideal for warbirds and aerobatic aircract, it comes with engine standoffs, electronic ignition, spark plug and Pitts style muffler.

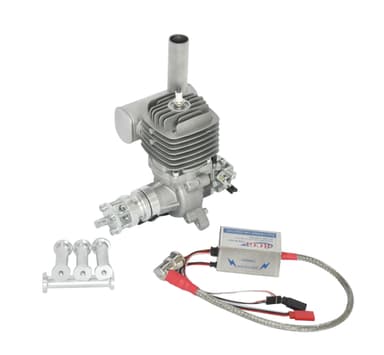

Besides the parts listed in the picture, RCGF 56cc includes gasket, bolts, throttle arm extension,a compact muffler,spark plug and manual.

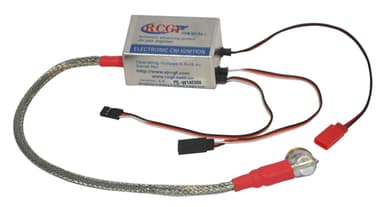

RCGF new 8.4V electronic ignition means faster first- time starts, smooth idling ,higher performance and superb throttle transition.

* Displacement : 56cc
* Bore x Stroke (mm) : 45mmx35mm
* Carburetor: RCGF
* Ignition: DC-CDI (Computer Controlled auto advance, electronic ignition system)
* Power supply: 4.8-8.4V
* Maximum Output: 5.6 HP/4.5KW
* speed rang : 1500-8700 rpm
* Weight - with ignition and muffler: 1544g
* Weight - without ignition & muffler: 1310g
* Propeller: 22x10 6900rpm (Standard Two leafs prop)
* Include: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 or equivalent
Idle Speed: 1500 rpm/min
Static Thrust:
15.1 kg at 100 m altitude
14.7kg at1800 m altitude
