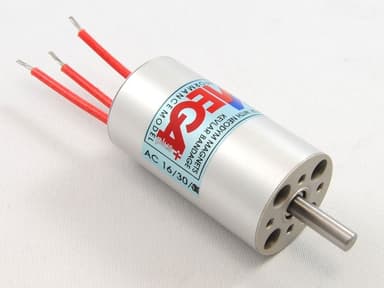

Mega Motor ACn 16/30/03 F5J 1380KV 135gram

3S-motor som er laget for FAI F5J-klassen. Electric motor MEGA 16/30/3 , propeller 12x6,5 , for category FAI F5J, model is able in 30 sec rise to height 200 m - model weight 2100g and even 2500g. ( tested in very strong wind and in calm weather ) (other possibilities MEGA 22 3S, MEGA 600/20/6 or lighter MEGA 16/25/5 )

Specs

* KV: 1380
* Rec cont Amp Draw: 30A
* Max A Draw: 55A 30Sek
* Rec Lipo Cells: 3
* Resistance 1 phase: 19,5mohm
* Numbers of winds: 3
* Weight: 135gram
* Diameter: 28mm
* Length: 51,5mm
* Shaft diameter 5mm

Prop data
AE CAM Carbon 10x6, r.40mm
Voltage [V]Current [A]Revs [ot/min]
9 - 29,9 - 10000
10 - 35,2 - 10940
11 - 40 - 11540

AE Carbon 11x6, r.40mm FOLDING
Voltage [V]Current [A]Revs [ot/min]
9 - 40 - 9000
10 - 46 - 9640
11 - 52,4 - 10340

Brushless neodym motors MEGA are designed for direct drive (propellers, ducted fans) and for drive with gearbox. Motors MEGA AC are six-pole 3 phase AC motors, hardened steel shaft is supported in two ball bearings with permanent grease filling. Neodym magnets of dynamically balanced rotor are kevlar bandaged. Efficiency reaches up to 88pst. Motor has good efficiency even at high currents thanks to vent holes. Hand made stator, lightweight rotor and design of MEGA AC motors allows permanent high rpm operation.

Motors MEGA ACn 16/x/x are designed for direct drive, gearbox drive, and for ducted fans. Kevlar bandaged rotor magnets allows more than 35 000 RPM. Output shaft diameter of this product line is 3,175mm. COMBAT model has output shaft diameter 5mm.
