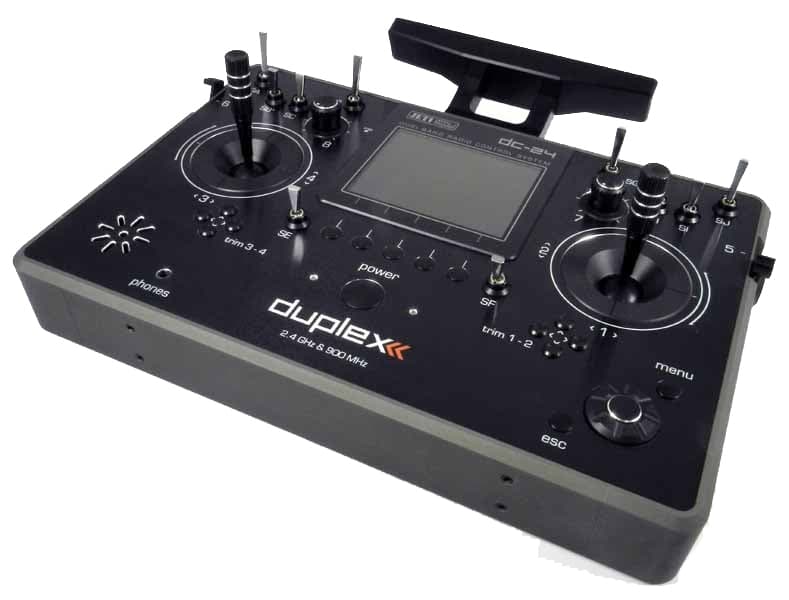

Jeti Duplex DC-24 Multimode Sender

Jeti Duplex DC-24 Multimode Sender

Dette produktet er ikke rangert enda.0

Jeti Duplex DC-24 Multimode Sender

Jeti Model

Kort om produktet

DC-24 er Jeti sitt nye flaggskip. Dette er en stilren radio i metallkonstruksjon, dette sikrer god beskyttelse og et godt inntrykk av kvalitet.Les mer om produktet
Dette produktet er ikke på lager

DC-24 er Jeti sitt nye flaggskip. Dette er en stilren radio i metallkonstruksjon, dette sikrer god beskyttelse og et godt inntrykk av kvalitet. Den er kraftig med mye modifikasjonsmuligheter, programmeringsmulighet og ikke minst full kontroll av selv den mest komplekse modell.
Innhold
* Jeti DC-24 Multimode
* Metallkoffert
* Skulderstropp
* Rsat900 mottaker
* Radiounderlag
Spesifikasjoner
* Weight: 1500g
* Dimensions: 230 x 270 x 40mm
* Power Output: 100mW
* Number of channels: 24
* Number of controls: 20
* Resolution: 4096 steps
* Telemetry: Yes
* Operational temperature: -10 - 60°C
* Operating time: up to 12h
* Compatible protocols DUPLEX 2.4GHz EX, 900MHz, EX Bus

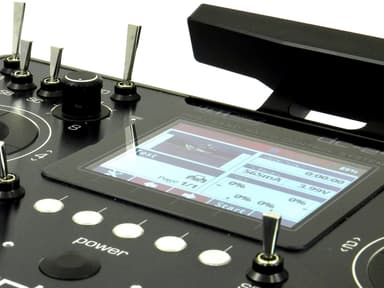

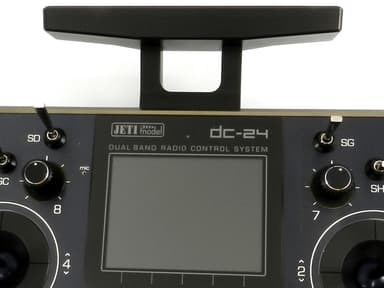

Color TFT LCD display
placed on the top side of the transmitter offers perfect legibility at any lighting condition and a large surveillance angle. Thanks to the high display resolution and application of a relatively big ammount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.

The DUPLEX EX
product family has been equipped with an improved telemetric data transfer system and the subsequent data processing on the LCD transmitter display or analysis on a PC. The transmitter allows setup of acoustical notifications (optionally created by the user himself), which are related to the actual telemetric values or to sound signals assigned to conditions of particular control elements.

User Applications
The DC-24 can be easily extended using third-party applications written in Lua programming language (www.lua.org).See the programming documentation.

Duplex 2.4GHz
For flight control and reception of telemetric data from the model to the transmitter the DC-24 takes advantage of the Duplex 2.4GHz wireless system, which has been developed by the JETI company as well. TheDuplex 2.4GHz data transfer system is very reliable and has been verified during many years.

Duplex 900MHz
the DC-24 features a backup wireless system for unmatched data transmission safety and reliability. The backup system works in cooperation with main Duplex 2.4GHz system.

Integrated microphone with voice recognition capability
Using the integrated microphone you can easily prepare your own audio files. Furthermore, you can teach the transmitter to respond to several voice commands.

Built-in Telemetry
From the beginning the DC-24 transmitter has been developed with regard to lucid displaying properties and exploitation of telemetry for model RC-control.

FM Tuner
Allows listening to your favourite fm radio station at the field.

Audio Player
the audio player application supports MP3 and WAV sound formats.

Model & Background Image
The DC-24 allows great personalization of the whole user interface. Color Schemes - it is possible to choose a color scheme that corresponds to model colors. The DC-24 offers several predefined color schemes.

Design of the DC-24 Transmitter
The main goal was maximum user comfort, exclusive appearance and longevity by exploitation of premium quality materials.

Precise Gimbals
Made of metal ball raced parts warrant together with contactless scanning an enormous longevity.
Haptic Feedback The gimbals are equipped with stick shaking vibration motors that can be used for alarm notifications, timers etc.

Li-Ion Battery
A reliable energy source with high capacity and long service life.

Easy Charging
Simply done by connecting the mains adapter to the transmitter. The charging
