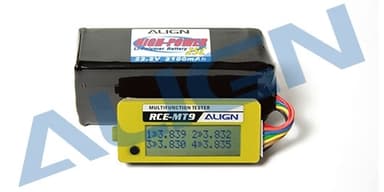

Multifunksjonstester fra Align. Kan måle cellespenninger på lipo, turtall på elektromotorer ved propellavlesning, kan brukes som bec ved mottakertesting, den kan kontrollere esc ved testing og brukes til servotesting.1:With 3A BEC Output 2.For RC model electrical equipment diagnostic and measurement use. 3.High precision display of individual cell voltage for 2 to 8S lithium packs.In addition to individual cell voltage, it also displays total pack voltage as well as percentage of packs remaining capacity. 4.Displays serial cell count in a pack, as well as highest and lowest cell voltage, and the voltage difference. 5.Servo diagnostic feature. Displays BEC output voltage and receiver signal output. 6.Digital tachometer to display 2 to 7 propeller rotating speed as well as memory for highest RPM attained. 7.Reverse polarity protection for cell input.
Specs: Voltage measurement range: 2-8S Lipo/Li-ion. Voltage display resolution: 0.001V PPM manual signal output 2270us-770us PPM automatic signal output: 1520us ±(120-630us) Number of propeller measurable: 2 to 7 Propeller rotating range: 1-60000RPM, measurement distance: 5-15cm BEC input voltage range: 4-7v With 3A BEC Output Battery input terminal spec: 2.5mm pitch pins, compatible with Align compatible balancing plugs.

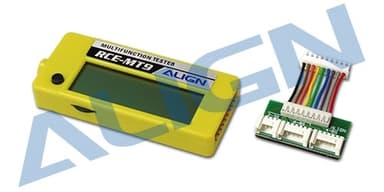

Accessories: Balance adapter D x 1(Compatible with TP balance plug of same specification)
Produktdimensjon
Vekt ink. emballasje
100,0 g
Nøkkelspesifikasjon
Produkttype
Reservedeler til radiostyrt kjøretøy
Modellbeskrivelse
Produkttype
Reservedeler til radiostyrt kjøretøy
Strekkode (EAN)
4713413980970
Leverandørens artikkelnummer
26597
