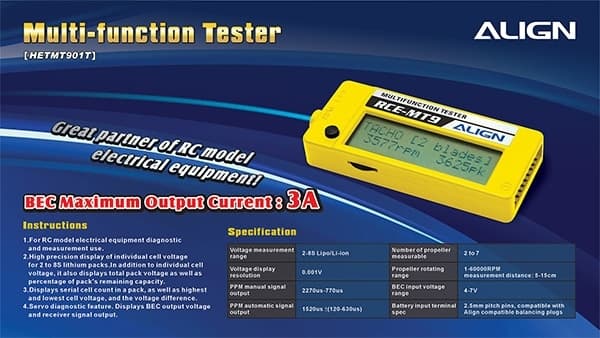

Align Multi-Function Tester RCE-MT9

Multifunksjonstester fra Align. Kan måle cellespenninger på lipo, turtall på elektromotorer ved propellavlesning, kan brukes som bec ved mottakertesting, den kan kontrollere esc ved testing og brukes til servotesting.1:With 3A BEC Output
2.For RC model electrical equipment diagnostic and measurement use.
3.High precision display of individual cell voltage for 2 to 8S lithium packs.In addition to individual cell voltage, it also displays total pack voltage as well as percentage of packs remaining capacity.
4.Displays serial cell count in a pack, as well as highest and lowest cell voltage, and the voltage difference.
5.Servo diagnostic feature. Displays BEC output voltage and receiver signal output.
6.Digital tachometer to display 2 to 7 propeller rotating speed as well as memory for highest RPM attained.
7.Reverse polarity protection for cell input.

Specs:
Voltage measurement range: 2-8S Lipo/Li-ion.
Voltage display resolution: 0.001V
PPM manual signal output 2270us-770us
PPM automatic signal output: 1520us ±(120-630us)
Number of propeller measurable: 2 to 7
Propeller rotating range: 1-60000RPM, measurement distance: 5-15cm
BEC input voltage range: 4-7v
With 3A BEC Output
Battery input terminal spec: 2.5mm pitch pins, compatible with Align compatible balancing plugs.

Accessories:
Balance adapter D x 1(Compatible with TP balance plug of same specification)
