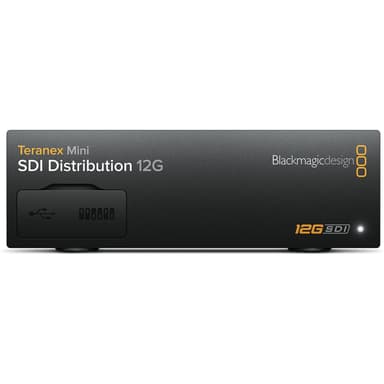

Blackmagic Teranex Mini SDI Distributer

Blackmagic Design Teranex Mini SDI Distributer  distribuerer en enkel SDI-videoinngang til opptil åtte SDI-utganger. Fungerer med de nyeste multi-rate 12G-SDI-tilkoblingene med full SDI-re-clocking, slik at omformeren automatisk kan bytte mellom alle SD-, HD- og Ultra HD-formater opp til 2160p60. Perfekt for å distribuere et enkelt SDI-signal til flere enheter, for eksempel skjermer, brytere og kodere.

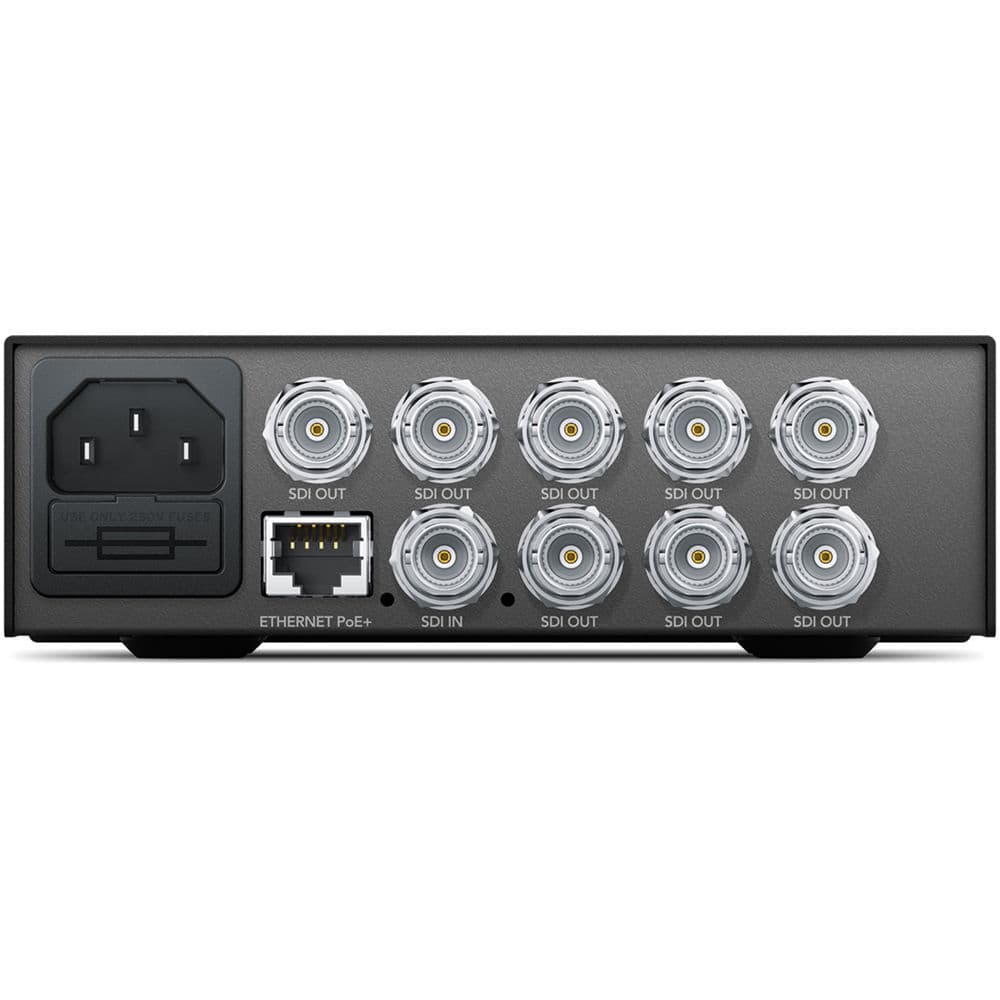

Connections

SDI Video Inputs

1 x 12G-SDI SD/HD/2K/4K auto  switching.

SDI Video Outputs

8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI  input

Embedded Audio  Support

16  channels.

Multi Rate Support

Automatic switching between  SD/HD/2K  and 4K

Updates and  Configuration

USB or  Ethernet

Reclocking

Yes

Standards

SD Video Standards

525i59.94 NTSC, 625i50  PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,  1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98,  2K DCI 24p,  2K DCI 25p
2K DCI 23.98PsF,  2K DCI 24PsF,  2K DCI 25PsF

Ultra HD Video  Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94,  2160p60

4K Video  Standards

4K DCI 23.98p,  4K DCI 24p,  4K DCI 25p

SDI Compliance

SMPTE 259M,  SMPTE 292M,  SMPTE 296M,  SMPTE 372M,  SMPTE 424M,  SMPTE 425M Level A and B,  SMPTE 2081-1,  SMPTE 2081-10,  SMPTE 2082-1 and SMPTE 2082-10

SDI Video Rates

SDI video connections are switchable between standard definition, high definition  level A  and  level B  3G-SDI,  6G-SDI  and  12G-SDI.

SDI Video  Sampling

4:2:2 and 4:4:4

SDI Audio  Sampling

Television standard sample rate of  48 kHz  and  24-bit.

SDI Color  Space

YUV & RGB
