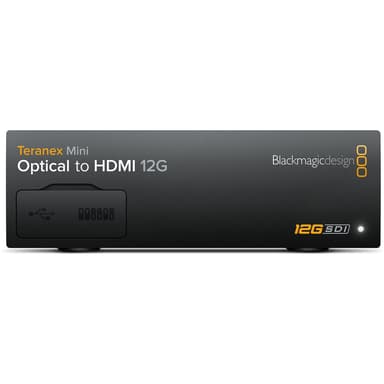

Blackmagic Design Teranex Mini Optisk til HDMI 12G Converter lar deg konvertere opp til et 12G-SDI-signal til HDMI, eller installere en valgfri optisk fibermodul og konvertere opptil 12G-fiber signaler til HDMI. Du kan legge inn og sende ut opp til DCI 4K (4096 x 2160) 60p signaler på både inngang og utgang.
1 x 12G-SDI SD/HD/2K/4K auto switching.
Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector.
1 x 12G-SDI SD/HD/2K/4K auto switching.
1 x 12G-SDI loop output.
1 x HDMI 2.0 type A connector with support for 2160p60.
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
4 channels professional 110O balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
8 channels.
Auto detection of SD, HD or 12G-SDI.
USB and Ethernet.
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K 25PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p,
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 297M for Optical Fiber SDI, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
4:2:2 and 4:4:4.
Television standard sample rate of 48 kHz and 24-bit.
4:2:2 and 4:4:4.
YUV and RGB.
