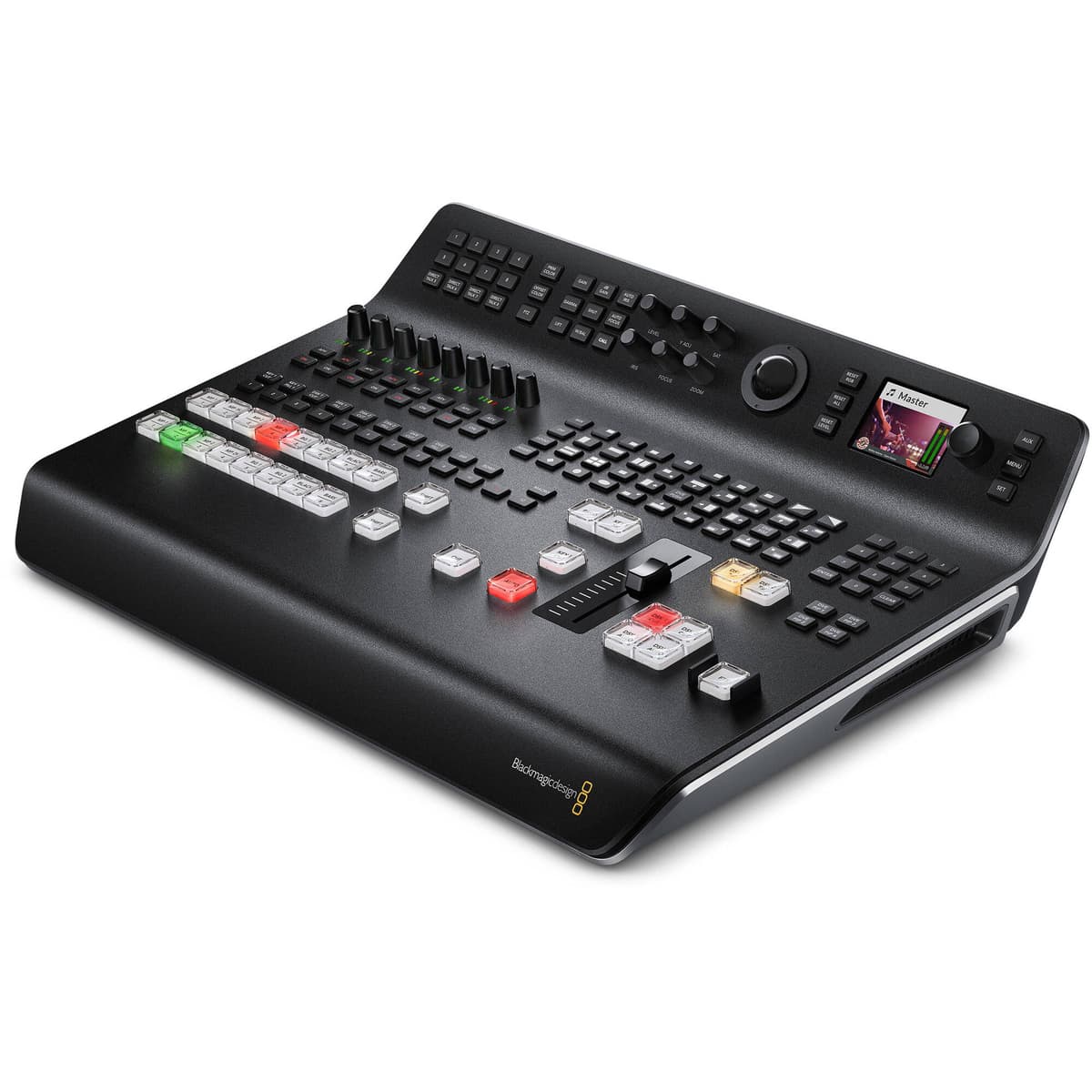

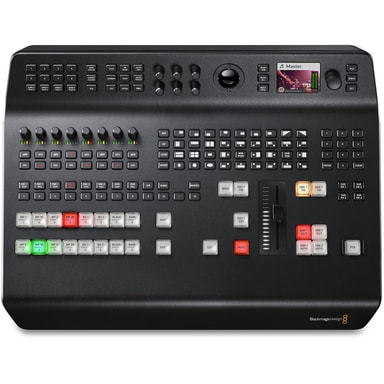

Blackmagic ATEM Television Studio Pro 4K

Blackmagic ATEM Television Studio Pro 4K

Dette produktet er ikke rangert enda.0

Blackmagic ATEM Television Studio Pro 4K

Blackmagic

Kort om produktet

Blackmagic ATEM Television Studio Pro 4KLes mer om produktet
Dette produktet er ikke på lager

Blackmagic Design ATEM TV Studio Pro 4K er en UHD 4K-kompatibel, 8-inngangs liveproduksjon mikser  med integrert kontrollpanel, egnet for kringkasting, sport, web og A/V-produksjoner. Denne allsidige  mikseren med  åtte uavhengige 12G-SDI-innganger godtar alle HD- og UHD-signaler opp til 2160p60.

En re-synkroniseringsfunksjon på hvert inngang gjør det mulig å sømløst bruke en kombinasjon av pro og forbruker kameraer, spillkonsoller og datamaskiner som kilde.

Egenskaper

  • Eight 12G-SDI inputs, each with re-sync and low-latency conversion
  • Supports HD video signals up to UHD 4K 2160p60
  • 12-input, 2-channel Fairlight audio mixer
  • UHD 4K multiviewer with up to 10 windows
  • CCU functions for compatible cameras
  • ATEM advanced chroma keyer
  • Integrated talkback feature for compatible cameras
  • Powerful DVE processor, 2-clip media pool with fill and key
  • Mac and PC compatible











HD Video Standards

720p50,  720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50,  1080p59.94
1080i50,  1080i59.94

Ultra HD Video  Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50,  2160p59.94

SDI Compliance

292M and 424M, 2081,  2082.

Video  Sampling

4:2:2 10-bit

Color  Precision

4:2:2 10-bit

Color  Space

4:2:2 YUV

Input Resolutions for  Computers

720p50,  720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94,  1080p60
1080i50, 1080i59.94, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94,  2160p60.

Colorspace  Conversion

None

Processing  Delay

6 Lines.

Audio  Mixer

12 input x 2 channel  mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per  channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Delay line and Stereo Synthesizer on the XLR inputs  only.
Master gain control. Headphone output level control with separate mix of Program, Talkback and  Sidetone.

Product Specifics

Upstream  Keyers

1 with Chroma/Linear/Luma  key.

Downstream  Keyers

2

Chroma  Keyers

1

Linear/Luma  Keyers

3

Talkback  Support

Built in, uses aviation  headset.

Mix Minus Support

Yes, on 8 camera PGM  outputs.

Transition Keyer  (Stinger/DVE)

Stinger and  DVE.

Total Number of  Layers

5

Pattern  Generators

2

Color  Generators

2

DVE with 3D Borders & Drop  Shadow

1

Interface

Minimum monitor resolution of 1366  x  768.

Number of  Windows

1  x  10

Routable  Windows

8 routable and 2 fixed for Program  and  Preview.

Tally

Red for program and green for preview  indication.

Tally  Output

Embedded via SDI. Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not  included)

Windows Source  Labels

Yes.

Multi View Monitoring

Multi View  Monitoring

1 x 10  Views.

Multi View Video  Standard

HD/Ultra  HD.

Media Player

Media  Players

2, with non volatile flash  memory.

Media Pool Still Image  Capacity

20 with fill and  key.

Media Pool Still Image  Format

PNG, TGA, BMP, GIF, JPEG and  TIFF.

Channels

Fill and key for each Media  Player.

Media Pool Clip  Capacity

2 with fill and key. Shared  pool.

Media Pool Clip File  Format

TGA Sequence.

Media Player Clip Length in 720  HD

1440  frames.

Media Player Clip Length in 1080  HD

360  frames.

Media Player Clip Length in Ultra  HD

90  frames.

Media Pool Audio File  Format

WAV, MP3 and  AIFF.

Control

Control  Panel

Built in with camera control. Software panel included. Supports optional broadcast  panel.

Control Panel  Compatibilty

Includes  ATEM Software Control Panel. Also  compatible with  ATEM 1 M/E Broadcast Paneland  ATEM 2 M/E Broadcast  Panel.

Control Panel  Included

ATEM Software Control Panel  included free for Mac 10.12 Sierra or Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows  10  64-bit.

Software

Software Updates

Using USB connection directly connected to Mac or Windows computers. Includes  ATEM Setup  Utility.

Configuration

Set via  ATEM Software Control Panel,  excluding ATEM chassis IP address which is set via the  ATEM Setup Utility  connected via USB to  chassis.
