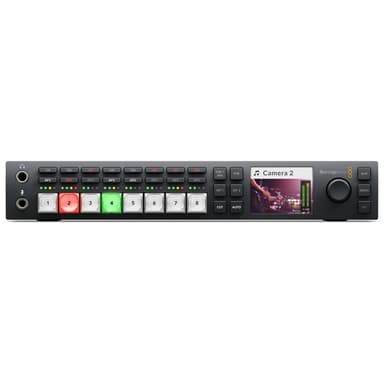

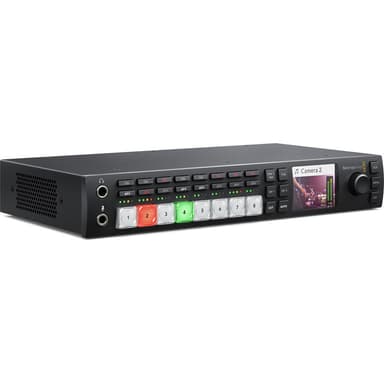

Blackmagic ATEM Television Studio HD

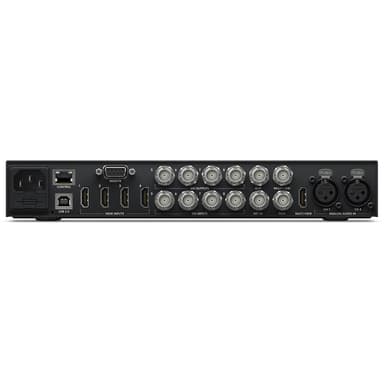

Blackmagic ATEM Television Studio HD er en kompakt, men kraftig brukervennlig løsning designet for kringkastere og A / V-profesjonelle. Det er fire HDMI- og SDI-innganger tilgjengelig på baksiden av chassiset, og begge settene av innganger støtter SD- og HD-oppløsningssignaler. Det relativt små chassiset passer på et standard utstyrsstativ med den separat tilgjengelige Teranex Mini Rack Shelf, så den kan bli tatt med på location for streaming av  video, eller installeres semi permanent for opptak eller kringkasting fra et studio.

Egenskaper

• 8-kanals SDI / HDMI Omformer
• NTSC / PAL, HD, Datasignalkompatibel
• 10-kanals digital lydmiks

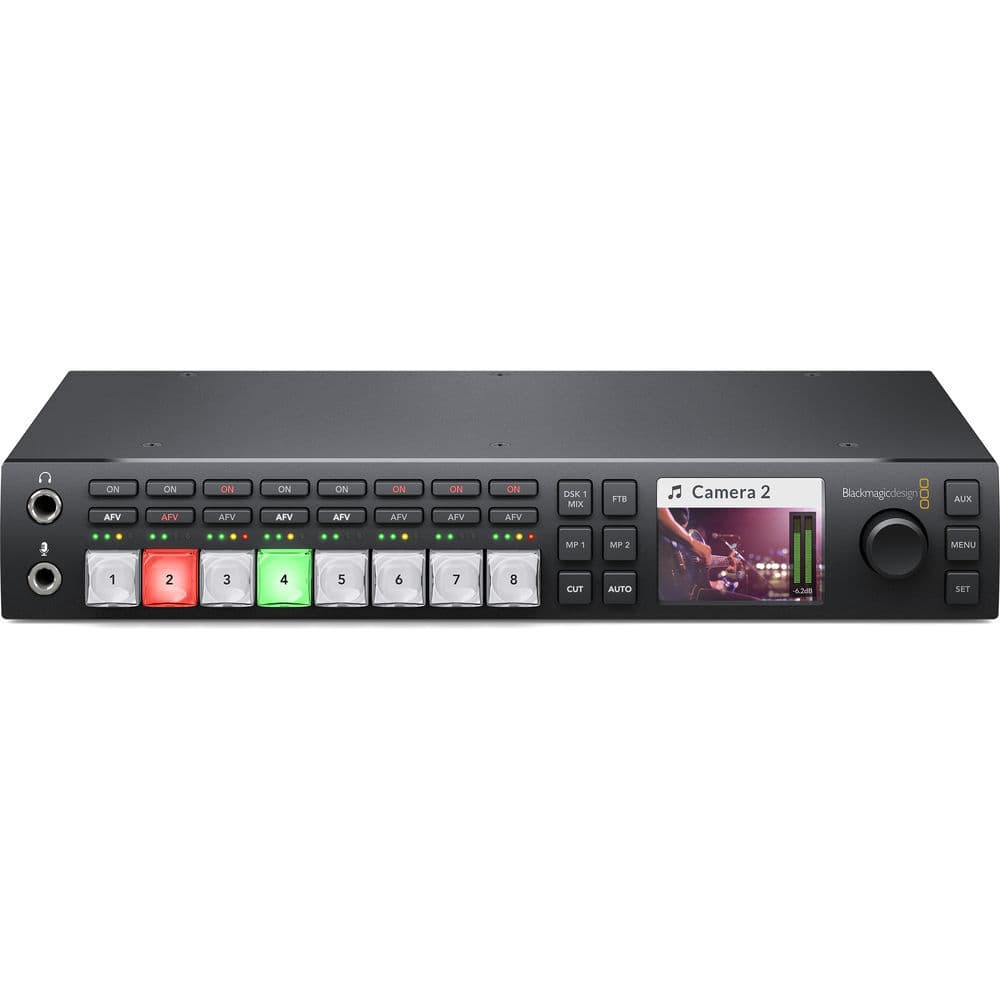

• Innebygd frontpanelkontroller
• Multiview utgang via HDMI og SDI
• Upstream og Downstream key-ere
• DVE for overganger og key-ere
• Photoshop plugin for grafikk
• Mediaspillere

SD Video  Standards

525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or  16:9

HD Video Standards

720p50,  720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50,  1080p59.94,
1080i50,  1080i59.94

Ultra HD Video  Standards

None.

SDI Compliance

SMPTE 259M, 292M and  424M.

Video  Sampling

4:2:2  10-bit

Color  Precision

4:2:2  10-bit

Color  Space

4:2:2 YUV

HDMI Input Resolutions for Computers

720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.

Colorspace Conversion

Hardware based real time.

Processing Delay

6 Lines.

Audio Mixer

10 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.

Product Specifics

Upstream Keyers

1

Downstream Keyers

2

Chroma Keyers

1

Linear/Luma Keyers

3

Talkback Support

Built in, uses aviation headset.

Mix Minus Support

Yes, on 4 camera PGM outputs.

Transition Keyer (Stinger/DVE)

DVE only.

Total Number of Layers

5

Pattern Generators

2

Color Generators

2

DVE with 3D Borders & Drop Shadow

1

Interface

Minimum monitor resolution of   1366  x  768.

Number of Windows

1 x  10

Routable Windows

8 routable and 2 fixed for Program and  Preview.

Tally

Red for program and green for  preview  indication.

Tally  Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not  included.)

Windows Source  Labels

Yes

Multi View Monitoring

Multi View  Monitoring

1 x 10  Views.

Multi View Video  Standard

HD

Media Player

Media  Players

2, with non volatile flash  memory.

Channels

Fill and key for each Media  Player.

Media Pool Still Image  Capacity

20 with fill and  key.

Media Pool Clip  Capacity

None.

Media Player Clip Length in 720  HD

None.

Media Player Clip Length in 1080  HD

None.

Media Player Clip Length in Ultra  HD

None.

Media Pool Still Image  Format

PNG, TGA, BMP, GIF, JPEG and  TIFF.

Media Pool Video File  Format

None.

Media Pool Audio File  Format

None.

Control

Control  Panel

Built in control panel. Software control panel included. Supports optional broadcast  panel.

Control Panel  Connection

Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the  software.

Control Panel  Compatibilty

Includes  ATEM Software Control Panel. Also compatible with ATEM  1  M/E Broadcast Panel and ATEM 2 M/E Broadcast  Panel.

Control Panel  Included

ATEM Software Control Panel  included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10  64-bit.
