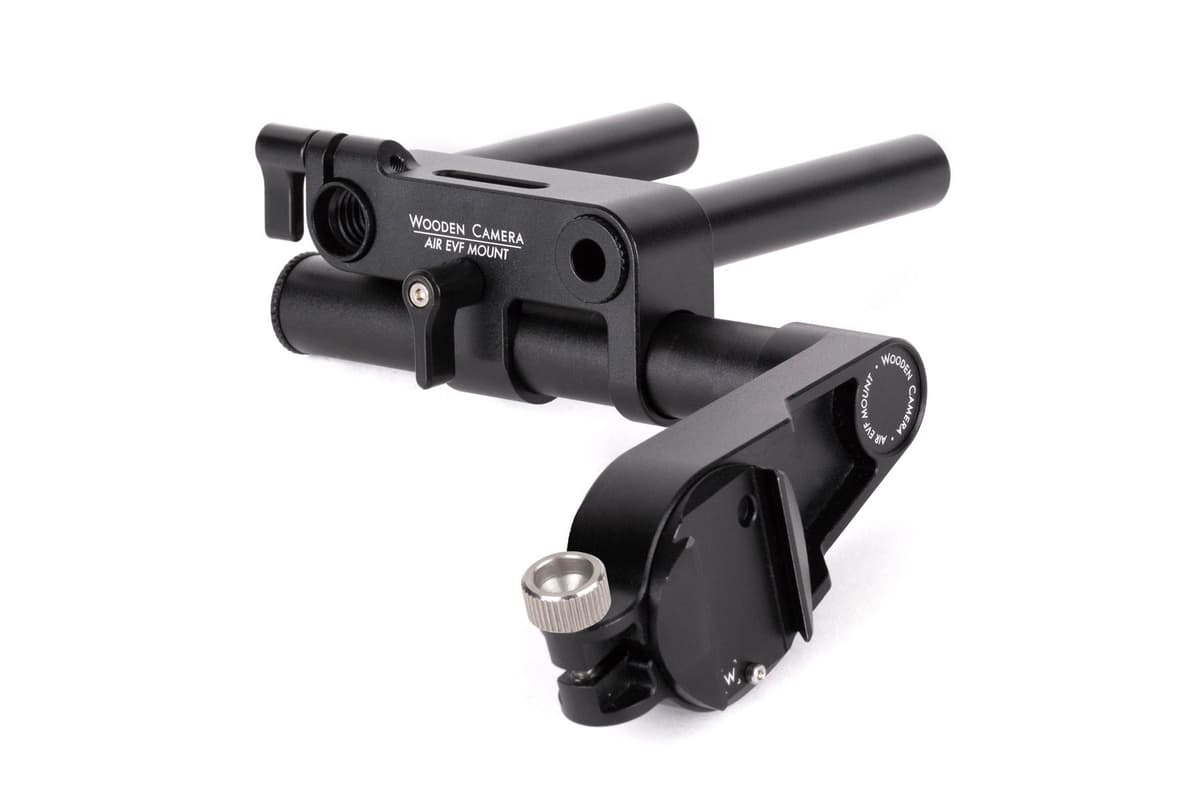

AIR EVF Mount (ARRI Alexa Mini MVF-1 / Mini LF MVF-2) is an
ultra-lightweight EVF mount for the ARRI MVF-1 (K2.75004.0) used on Alexa Mini
/ Amira, the ARRI MVF-2 (K2.00209160) used on the Alexa Mini LF, and the
ARRI VF-1 (K2.72008.0) used on Alexa XT, SXT, SXT-W, and Classic. AIR EVF is
almost half of the weight of products on the market, which is how it got the
name! The system moves forwards and backwards over the lens area on two 15mm
rods, left and right on a 19mm rod, and a friction knuckle allows for quick
tilting of the EVF without having to loosen a thumbscrew.

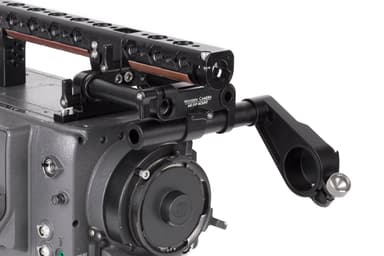

A top 15mm lightweight rod mount is required for proper attachment of the
AIR EVF Mount, and the Master Top Handle, shown in the example photos and video
is a good option for this. Alternatively, if you have the NATO Handle Plus v2 Kit or similar,
a Rod Clamp (15mm LW) can be added to
the front which would hold the two 15mm rods. Please contact
us if you need any configuration assistance
The tool-less design allows quick installation and removal of EVF and if
further extension is needed for tripod shooting, the AIR EVF Extension Arm (ARRI Alexa Mini MVF-1 / Mini LF
MVF-2) can be installed using the same method.
Specifications:
Weight: 282g (0.6 lbs)
Dimensions: 158.8 x 145.5 x 45.4 mm (6.3 x 5.7 x 1.8 in
