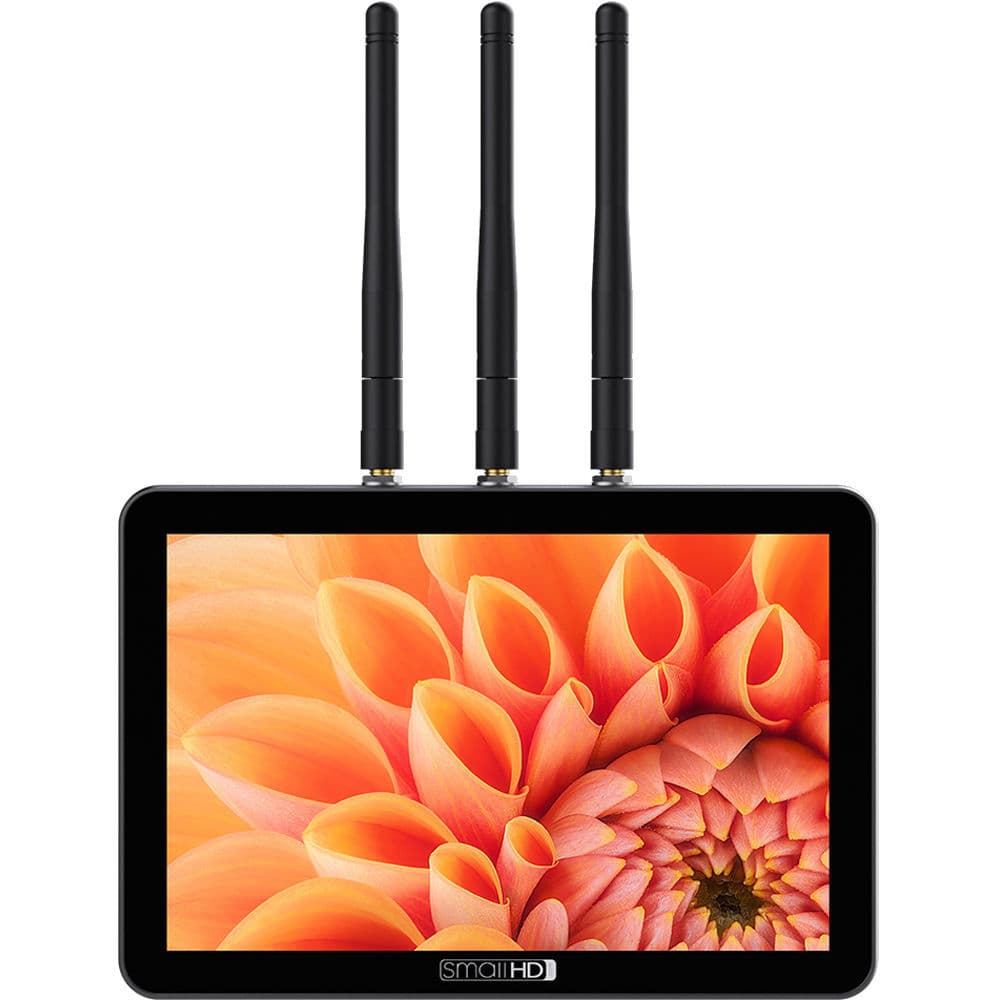

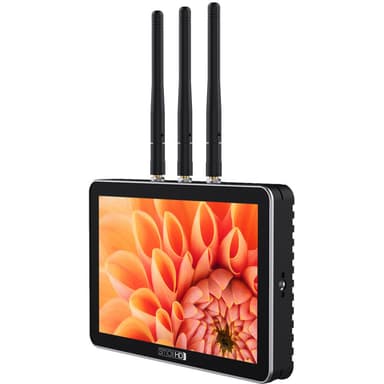

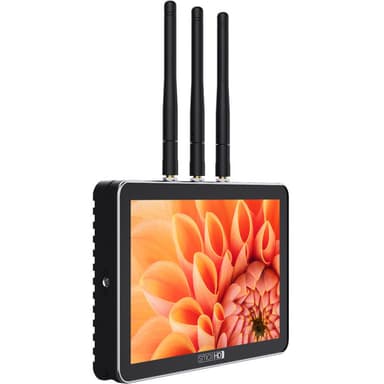

The SmallHD FOCUS 7 On-Camera Monitor with Bolt 500 Receiver integrates Teradek's Bolt 500 wireless receiver with the FOCUS 7 daylight-viewable on-camera monitor. Using the built-in receiver, the FOCUS 7 can receive up to 1080p60 video from Teradek's Bolt 500, Bolt 500 LT or Bolt 500 XT transmitters, or from a SmallHD's FOCUS Bolt 500 TX, with a line-of-sight transmission distance of up to 500'.
The included rubberized handgrips and neck strap enable you to comfortably carry the combo unit around the set. An L-series type battery kit, cable clips, matte and glossy screen protectors, and cleaning cloth are also included. Designed with professional monitoring tools, the SmallHD FOCUS 7"" On-Camera Monitor is bright, lightweight, and features a sharp 323 ppi display. The 1000 cd/m² bright touchscreen 1920 x 1200 IPS LCD panel is daylight-viewable and supports up to UHD 4K video via its micro-HDMI input. Using the intuitive Swipe OS, you can turn on and save pages of various monitoring tools and focusing aids with a tap.

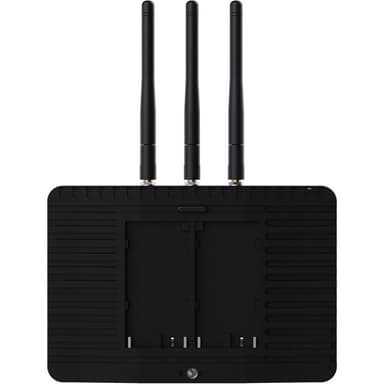

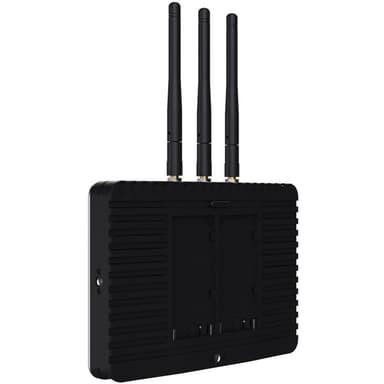

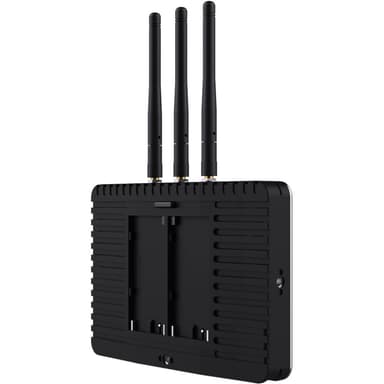

At the rear of the monitor, a dual NP-F battery bay enables you to hot-swap L-series batteries with only one required to power the unit. A 3.5mm barrel DC output can power select cameras with a separately available DC coupler, enabling you to extend your DSLR or mirrorless camera's runtime. A tilt arm is included for mounting the monitor via your camera's accessory shoe or on a 1/4""-20 screw.
FeaturesDaylight viewable, 7"" touchscreen on-camera monitor with 1000 cd/m² brightnessThe integrated Teradek Bolt 500 receiver supports up to 1080p60 video a full-size HDMI input supports up to UHD 4KCompatible with Bolt 500/500 LT/ 500 XT or Bolt 500 TX transmitterUp to 500' line-of-sight transmissionLightweight, compact design, 10-bit IPS LCD panelUses SmallHD Swipe OS3 to organize and save customized function and settings pagesIncluded support arm tilts up to 180° and mounts to either a 1/4""-20 screw or a cold shoeThe dual-battery plate enables you to hot-swap two L-series type batteries for continuous operationDisplay ToolsPixel Zoom: 2x and 4x with pinch zoom
Aspect Ratios: Preset and customizable
DSLR Scale: Canon 5D Mk II and Canon 7D
Custom Scale: Underscan only
Anamorphic De-Squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image Flip: Auto and manual
Image Rotation: Auto and manual
Color Focus Assist: Adjustable style and intensity
Peaking: Adjustable intensity
False Color: Spectrum, ARRI-style and customizable
Dual Zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
Picture-in-Picture: No
RGB Parade: Customizable
Histogram: Luma and RGB
Horizon Indicator: No
Image Capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT Import: Via SD card or USB storage device
Image Overlay: Opacity slider and blink setting
Blue Only: No
Audio Meters: Up to 8 channels
In the BoxSmallHD FOCUS 7 Daylight-Viewable 7"" Monitor with Bolt 500 Receiver
