Blackmagic Videohub Smart Control Pro

Blackmagic Videohub Smart Control Pro

Dette produktet er ikke rangert enda.0

Blackmagic Videohub Smart Control Pro

Blackmagic

Kort om produktet

Blackmagic Videohub Smart Control ProLes mer om produktet
Dette produktet er ikke på lager


Når du vil ha den raskeste rutingen du kan få, lar Videohub Smart Control Pro deg rute med et enkelt knappetrykk. Programmer hver knapp for et enkelt ruters krysspunkt. Du kan programmere for å ha flere destinasjoner.

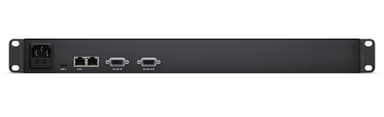

Ethernet

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No  power over ethernet  on Ethernet  Out.

RS-422

In and Out (for future  implementation)

Computer Interface

USB-C for configuration and software  updates.

Power

100 - 240 AC

Macro Capability

Up to 10 macro buttons can be assigned to activate multiple simultaneous switching  commands.

Hardware Control

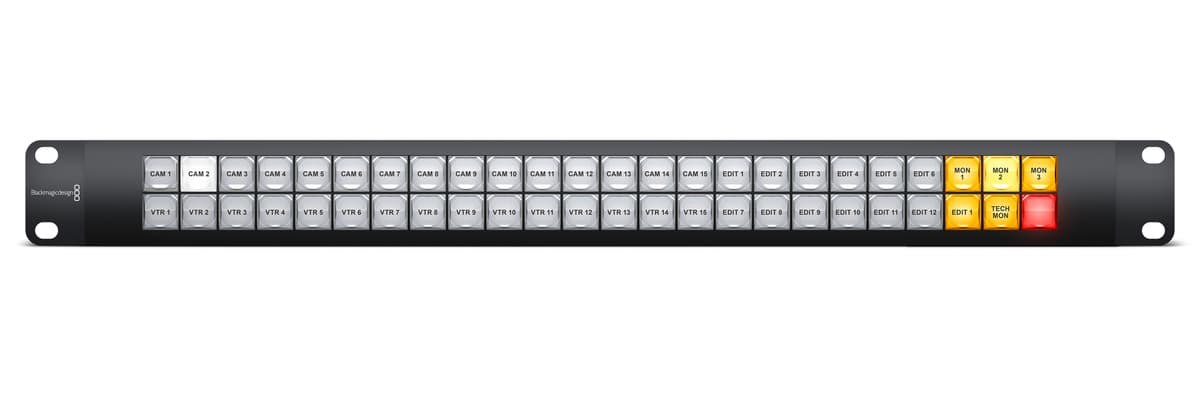

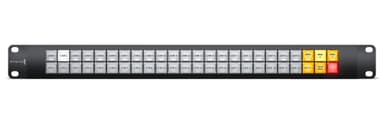

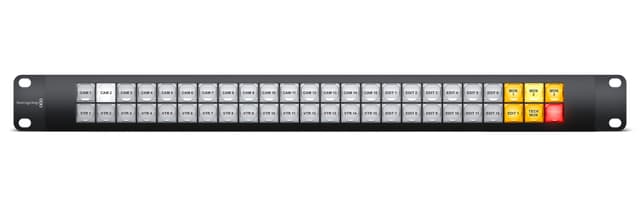

48 programmable buttons and RJ45 Ethernet used  for remote  control of routers over an IP  network.

Software

Internal Software upgrade via included firmware updater application via  USB.

Operating Systems

Mac 10.13 High Sierra,
Mac 10.14 Mojave or  later.

Windows 10.

Physical Installation

1 rack unit size. Less than  3 inches deep.

Button Configuration

Included free for Windows™ and Mac™ via  USB 2.0high speed (480Mb/s)  interface.

Power Requirements

Power Fail Protection

Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later  recall.

Power Supply

Internal 100 - 240 V AC

Physical Specifications

Environmental Specifications

Storage temperature

-20° to 45°  C (-4° to 113°  F)

Relative Humidity

0% to 90% non-condensing

What's Included

Videohub Smart Control Pro

Warranty

12 Months Limited Warranty.
