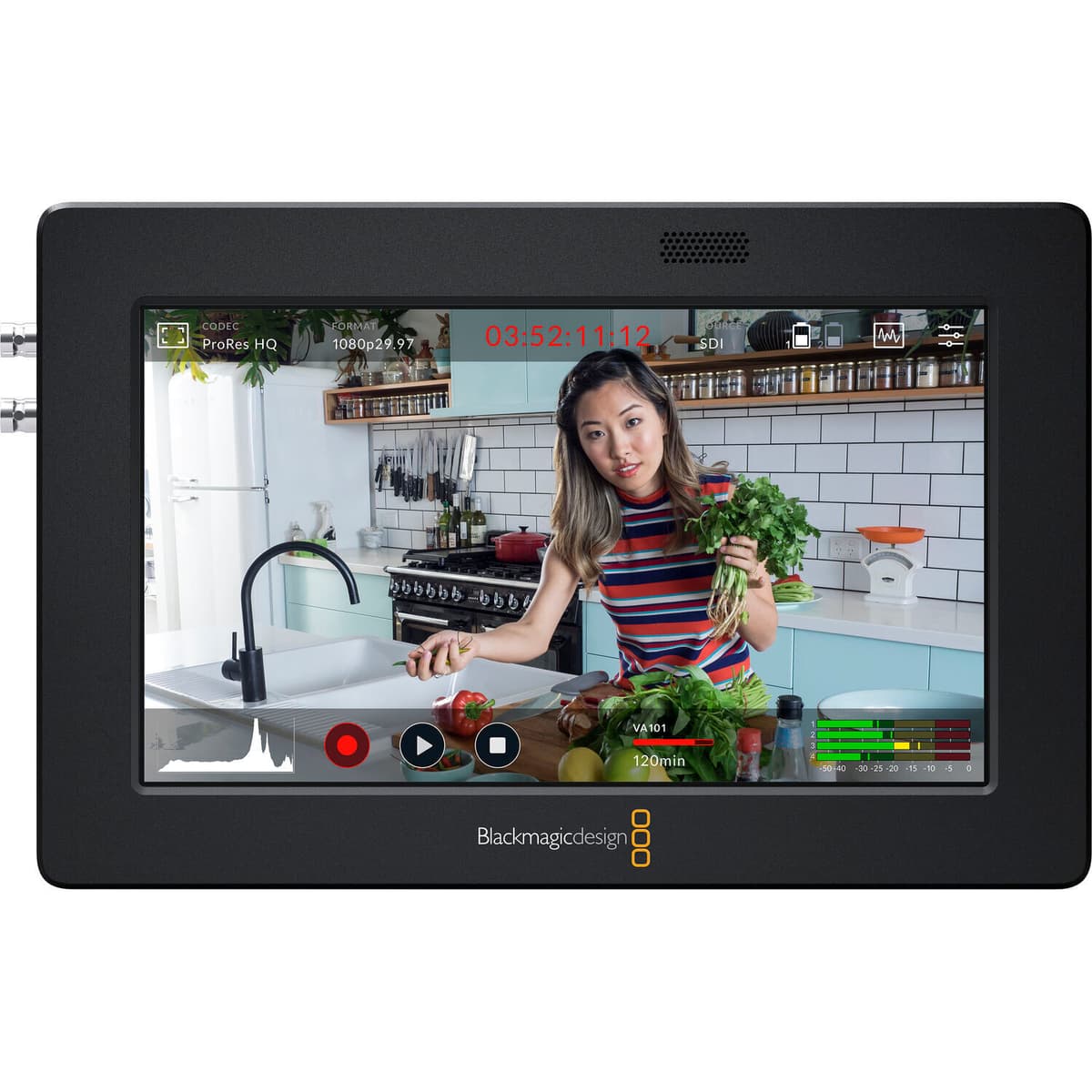

Blackmagic Video Assist 5 3G

Blackmagic Video Assist 5” 3G er en bærbar skjerm, en profesjonell opptaker, et bærbart omfang og en fantastisk kamerasøkerløsning.

Du kan også legge til kodekoder av bedre kvalitet og en større skjerm til ethvert SDI- eller HDMI-kamera! Den nye designen har nyvinninger som 4 innebygde scope, forbedrede fokusassistensfunksjoner, en  tally indikator  og innebygde 3D LUT-er.

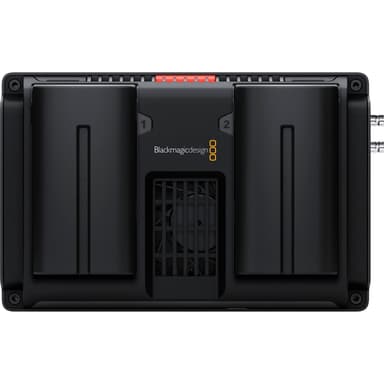

Video Assist 5” 3G-støtteformater opp til 1080p60, og den nye designen har også L-serien batterier for lengre levetid.

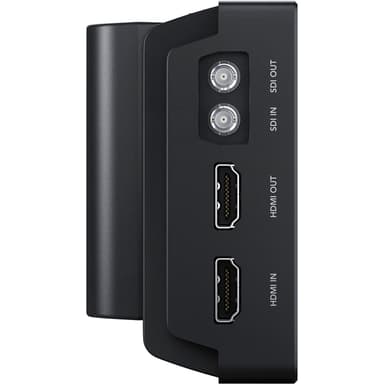

Tilkoblinger

SDI Video Inputs

1 x Micro BNC

SDI Video Outputs

1 x Micro BNC

SDI Rates

270Mb, 1.5G,  3G

HDMI Video Inputs

1

HDMI Video Outputs

1

Analog Audio Inputs

None, embedded audio  only.

Analog Audio Outputs

1 x 3.5mm headphone  jack.

Built in Speaker

Mono

Screen Dimensions

5  inch  1920 x 1080.

Screen Brightness

300nits

SDI Audio Inputs

16 channels embedded via  SDI

SDI Audio Outputs

16 channels embedded via  SDI

HDMI Audio Inputs

8 channels embedded via  HDMI

HDMI Audio Outputs

8 channels embedded via  HDMI

Remote Control

None

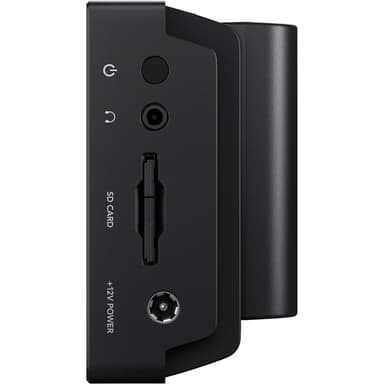

SD Interface

1 x UHS-I SD  slot.

Storage Type

SDXC UHS-I and SDHC UHS-I SD  cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD  cards.

Computer Interface

1  x  USB Type-C for initial setup, software updates and Video Assist Utility software  control.

SDI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50  PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE  259M, SMPTE  292M, SMPTE  296M, SMPTE  425M

SDI Metadata Support

HD RP188

Audio Sampling

Television standard sample rate of 48  kHz  and 24-bit.

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

REC  601, REC  709

Multiple Rate Support

SDI and HDMI switches between 270  Mb/s, 1.5  Gb/s  and 3 Gb/s.

HDMI Video Standards

SD Video Standards

525i59.94  NTSC, 625i50  PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Precision

10-bit

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of  content.

Media

Media

1 x UHS-I SD for HD  recording.

Media Type

SDXC UHS-I and SDHC UHS-I SD  cards.

Supported Codecs

ProRes 422 HQ,  ProRes 422,  ProRes 422 LT,  ProRes 422 Proxy,  DNxHD 220x,  DNxHD 145,  DNxHD 45,  DNxHD 220x MXF,  DNxHD 145 MXF,  DNxHD 45 MXF.

Control

Recorder Control

Integrated capacitive touchscreen LCD with Blackmagic  OS onscreen controls for settings and navigating  menus.

External Control

SDI and HDMI start/stop, timecode  run.

Scopes

Scopes

Waveform, RGB Parade, Vector,  Histogram.

Viewing Modes

Scopes with picture in picture or picture overlay and opacity control.
