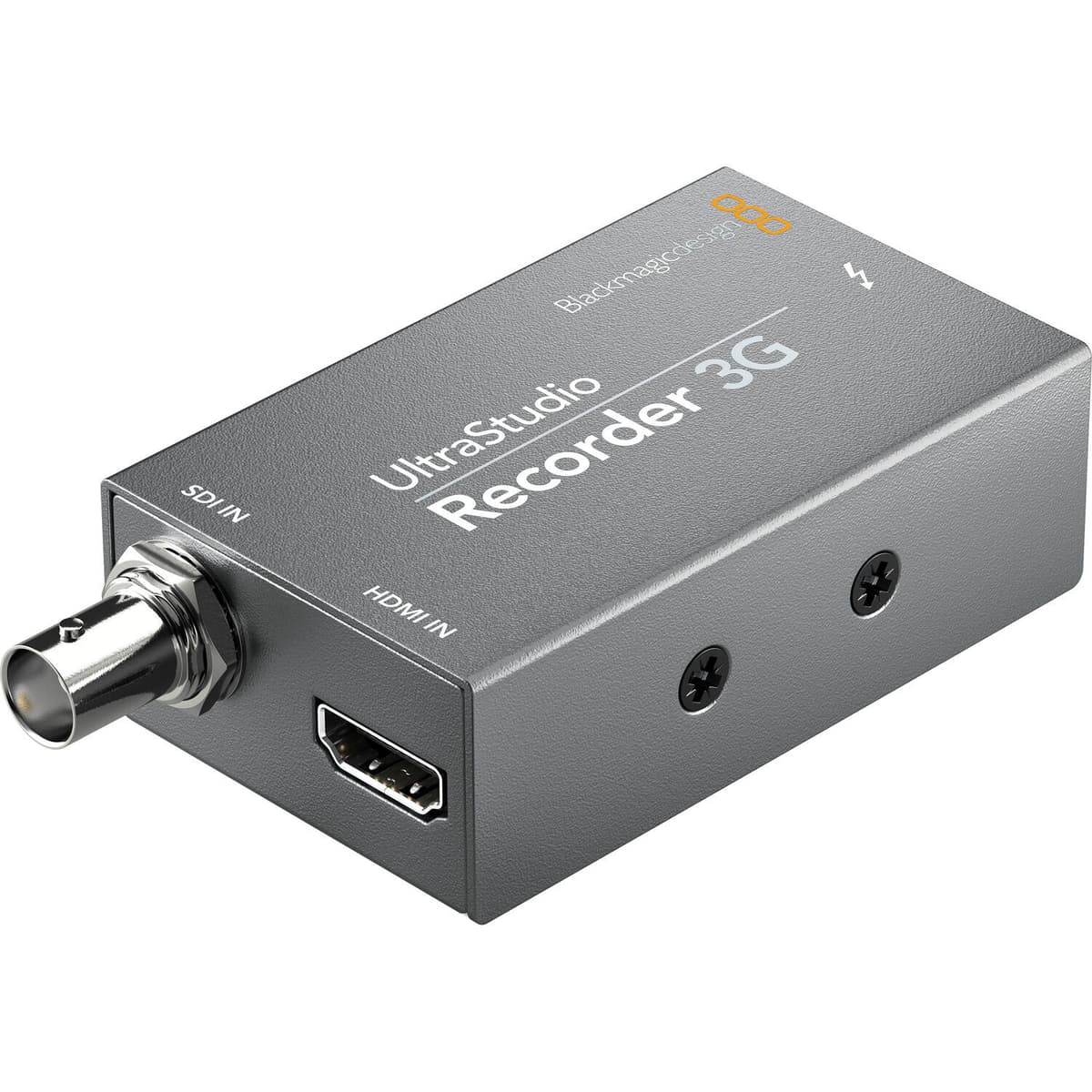

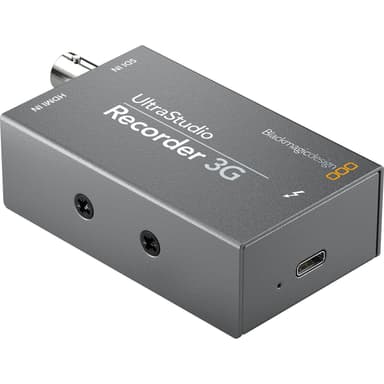

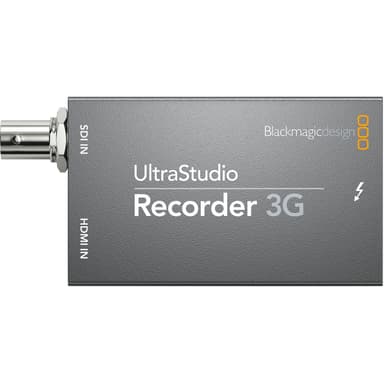

Blackmagic UltraStudio Recorder 3G

Få verdens minste SDI- og HDMI-videoopptak til lomme for din Thunderbolt 3 bærbare eller stasjonære datamaskin.

UltraStudio Recorder 3G har 10-bit ukomprimert og komprimert videoopptak av høyeste kvalitet som er kompatibel med all populær videoprogramvare inkludert DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC og hundrevis mer

Tilkoblinger

• SDI Video Inputs: 1
• SDI Rates: 270Mb, 1.5G, 3G
• SDI Audio Inputs: 16 Channels embedded in  SD/HD
• HDMI Video Inputs: 1
• HDMI Audio Inputs: 8 Channels embedded in  SD/HD
• Computer Interface: Thunderbolt™  3 (Mac  OS, Windows and  Linux)

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed  10-bit 4:4:4.

Software

Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac  OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on  Linux.

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater  software.

Software Applications

• DaVinci Resolve
• Adobe Premiere Pro  CC
• Adobe Photoshop  CC

Other supported applications include:

Sony Catalyst Production Suite, Grass Valley Edius, Tools On Air Just In, Softron MovieRecorder and Mreplay, Adobe Flash Media Live Encoder, Metus Ingest, Cinegy Capture Pro, Glookast Capturer, Burst Video REC Marker and Webclip2Go, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class  X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO  Mistika.

SDI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2Kp23.98 DCI,  2Kp24 DCI,  2Kp25 DCI,  2Kp29.97 DCI,  2Kp30 DCI,  2Kp50 DCI,  2Kp59.94 DCI,  2Kp60 DCI
2KPsF23.98 DCI,  2KPsF24 DCI,  2KPsF25 DCI,  2KPsF29.97 DCI,  2KPsF30 DCI

SDI Compliance

SMPTE  259M, SMPTE  274M, SMPTE  296M, SMPTE  424M  and SMPTE 425M A/B

SDI Metadata Support

RP 188/SMPTE 12M-2 and closed  captioning.

SDI Audio Sampling

Television standard sample rate of 48  kHz  and 24-bit.

SDI Video Sampling

4:2:2, 4:4:4

SDI Color Precision

8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all  standards.

SDI Color Space

REC 601, REC 709 and REC  2020

Multiple Rate Support

SDI video connection is switchable between  SD and HD.

HDMI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50  PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Audio Sampling

Television standard sample rate of 48  kHz  and 24 bit.

HDMI Video Sampling

4:2:2 and 4:4:4

HDMI Color Precision

8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all  standards.

HDMI Configuration

HDMI 2.0a supports Deep  Color.

HDMI Color Space

REC 601, REC 709 and REC  2020

Multiple Rate Support

HDMI video connection is switchable between  SD and HD.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of  content.

Hardware Frame Buffer

v210  (10 bit YUV),  2vuy  (8 bit YUV),  ARGB, BGRA  (8 bit RGB),  r210  (10 bit RGB),  R12B, R12L  (12 bit RGB).

Processing

Colorspace Conversion

Hardware based real  time.

Physical Installation

Requires computer with a  Thunderbolt™  3 USB-C port. Please check support pages to see the full system  requirements.
