Lumenier QAV210 Charpu FPV Racing Quad 3mm. The QAV210 CHARPU is an extended version of the new QAV180, Lumeniers smallest FPV quad kit to date.Les mer om produktet
Kort om produktet
Lumenier QAV210 Charpu FPV Racing Quad 3mm. The QAV210 CHARPU is an extended version of the new QAV180, Lumeniers smallest FPV quad kit to date.Les mer om produktet

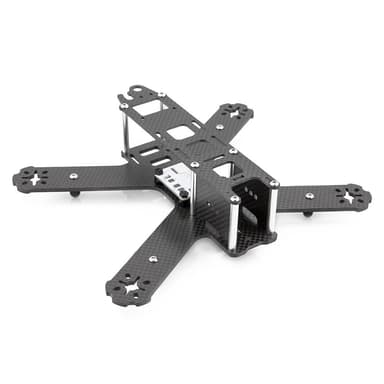

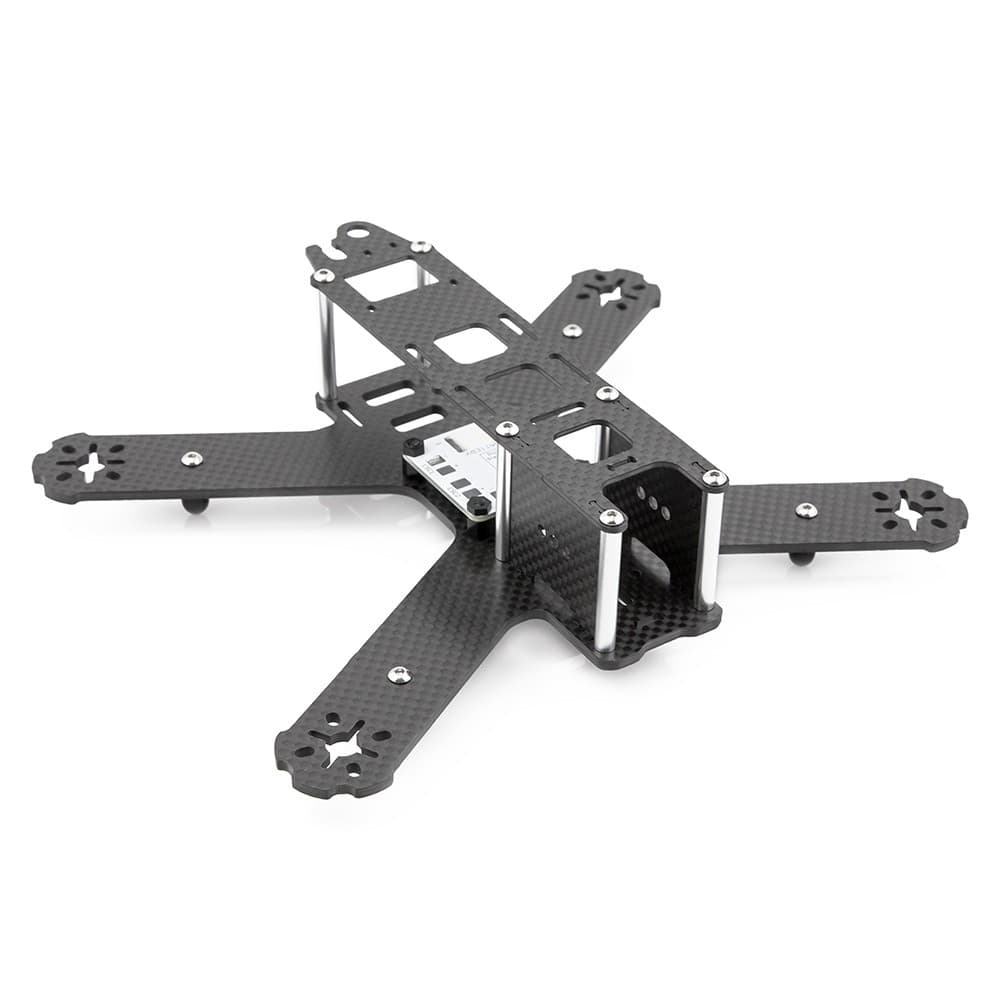

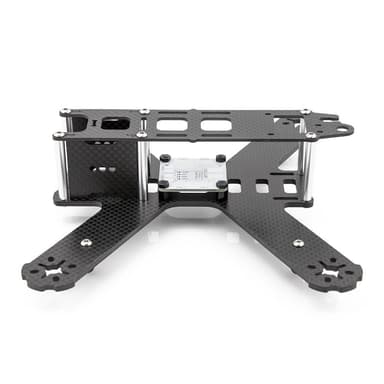

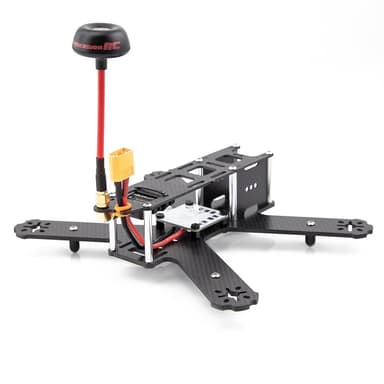

Lumenier QAV210 Charpu FPV Racing Quad 3mm. Designed for and named after one of the top FPV pilots in the world, the new Lumenier QAV210 CHARPU Carbon Fiber FPV Quadcopter airframe is CHARPUs new go to frame for acrobatic FPV sessions. The QAV210 CHARPU is an extended version of the new QAV180, Lumeniers smallest FPV quad kit to date. The QAV210 CHARPU is designed to be the smallest possible airframe while comfortably supporting 5 props and 220X size motors. The assembled kit containing Carbon Fiber Plates, Power Distribution Board and all hardware weighs in at only 91g. The included, but optional landing gear adds another 5g.Features Full 3K Carbon Fiber airframe featuring a solid 3mm thick Unibody main plate. Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns). Bumpers on the end of the arms to protect the motor during a crash, just like the QAV250. Flight controller cover plate includes cutouts for SMA connector and video transmitter as well as a holder for the included XT-60 Lipo pig-tail. Included Lumenier 4Power power distribution board and XT-60 Pig-Tail to power ESCs and FPV flight electronics. The PDB can optionally be outfitted with a Pololu 12v or 5v voltage drop-down (Pololu board not included). Easy Lipo Access (suggested Lipo is a 1000mah 3s) Support for 32mm board cams as well as 26mm cams in cases such as the Lumenier CM-650. Support to carry HD camera (such as the GoPro 4, Mobius, or GoPro Session) with optional camera vibration mount (not included) Included Landing Gear
Weight Airframe: 91g (with PDB and hardware), 99g with included Landing Gear. AUW: The QAV180 is flown with an AUW of 256-281g depending on motor choice (includes all flight electronics and FPV gear, but without Lipo or HD camera).
Produktdimensjon
Nøkkelspesifikasjon
Produkttype
Reservedel til drone
Modellbeskrivelse
Produkttype
Reservedel til drone
Strekkode (EAN)
7072655015473
