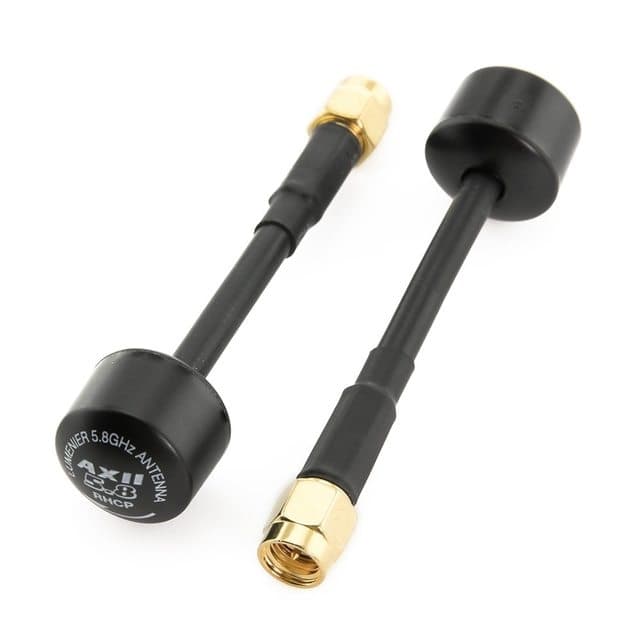

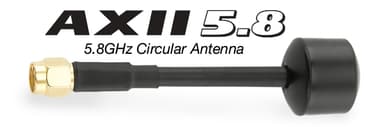

Lumenier AXII 5.8GHz Antenna RHCP 2pcs

Name: Lumenier AXII 5.8GHz Antenna RHCP 2pcs
Brand: Lumenier
SKU: MP34726

Varenummer: MP34726

0 Anmeldelser

Kort om produktet

Lumenier AXII 5. 8GHz Antenna RHCP 2pcs. The revolutionary Lumenier AXII 5. 8GHz Antenna (RHCP) with SMA connector. A mini sized 5.Les mer om produktet

Kort om produktet

Lumenier AXII 5. 8GHz Antenna RHCP 2pcs. The revolutionary Lumenier AXII 5. 8GHz Antenna (RHCP) with SMA connector. A mini sized 5.Les mer om produktet

Spesifikasjoner

Se alle spesifikasjoner

Dette produktet er ikke på lager

Spesifikasjoner

Se alle spesifikasjoner

Lumenier AXII 5.8GHz Antenna RHCP 2pcs. The revolutionary Lumenier AXII 5.8GHz Antenna (RHCP) with SMA connector. A mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio.

Details
The Lumenier AXII 5.8GHz Antenna makes a giant leap forward in FPV antenna technology. Lumenier, in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you one of the smallest, lightest and best performing FPV antennas in the world. The AXII antenna is an original design that features a new RF pathway technology (unique hybrid network) allowing it to be incredibly light weight (7.6g) and less than half the size of most other 5.8GHz CP antennas.

Even though the AXII is both small and light weight, it does not sacrifice any performance. In fact it out performs most other antennas in all categories. Precision engineering has given this antenna a near perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency youre on.

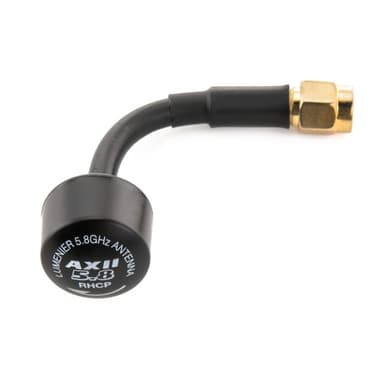

The AXII is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The cable is a semi-rigid, black coated RG402 cable and 45mm long, allowing for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside. Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Specifications
Gain: 1.6dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 7.6g
Size: 70mm x 16mm
Cable: Semi-rigid RG402
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas

Polarization
Right Hand Circular (RHCP)

Includes
2x Lumenier AXII 5.8GHz Antennas (RHCP) with SMA
