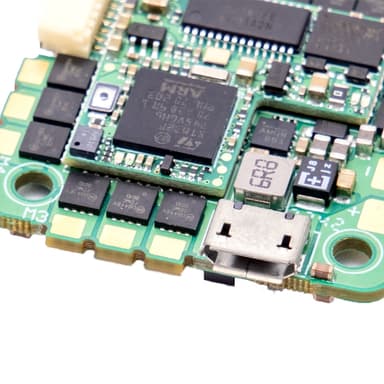

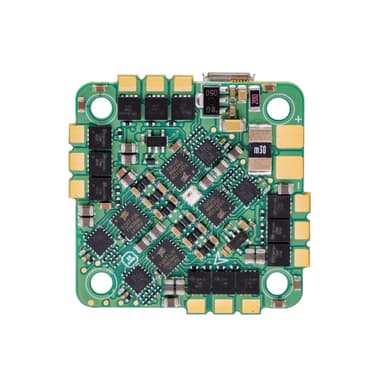

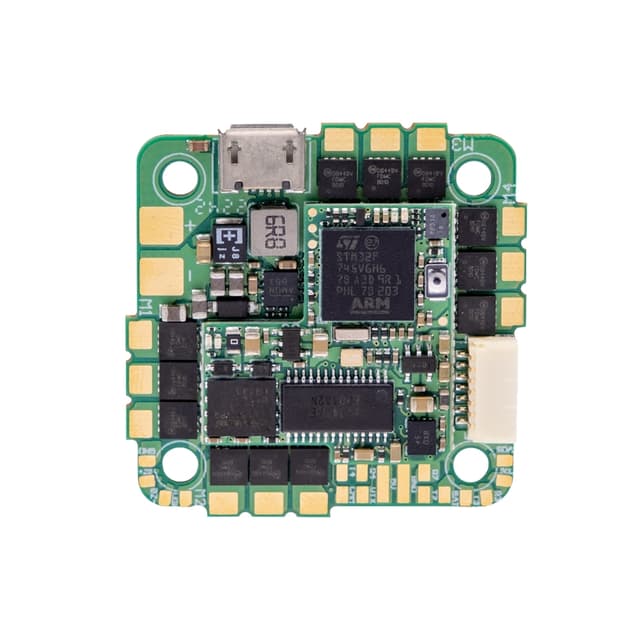

iFlight Blitz Whoop F7 AIO 55A V1

All-in-one flightcontroller og fartsregulator i ett brett.
FC spesifikasjoner fra produsent
MCU: BGA-STM32F745
Gyro: BMI270
Blackbox: 16MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E)
FC FirmwareIFLIGHT_BLITZ_F7_AIO
Mounting pattern: 25.5*25.5mm 3mmDimensions: 32.5*32.5mmWeight: 8.5g BEC: 5V 2A / 3AInput voltage: 2-6S, support LIHV batterySmartaudio / IRC Tramp VTX protocol supported

ESC spesifikasjoner fra produsent
MCU: BB21
Driver: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 55A, peak value 65A (10 seconds)
ESC firmware: Q-H-40 - Bluejay, 0.16, 24kHz
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: NO
Bidirectional DShot: Yes(need to use Bluejay firmware)
Supports DShot DShot150/300/600/MultiShot/ OneShot etc

1 x Defender 25 BLITZ F7 AIO
2 x Capacitor 470uF/35V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
8 x M2*12mm screws
8 x M2 Transparent Nylon Nut
10 x 0.8mm black Heat shrink tube 10mm
