Kolink Rocket Heavy Aluminium Mini-ITX Case - Gunmetal Grey
Varenummer: 206664
Kort om produktet

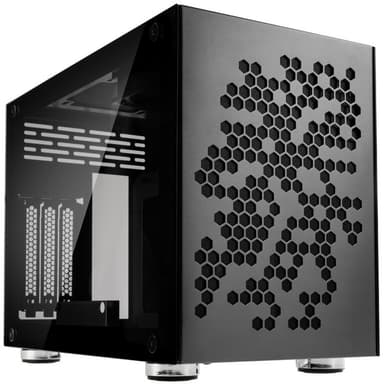

Rocket Heavy is a Mini-ITX 15.8L in size case. The compact case features dual tempered glass side panels and support for triple slot vertically mounted 340mm VGA card using the supplied mount & PCI-E riser cable, a 240mm radiator and 3x 120mm fans.
Se alle funksjonerSpesifikasjoner
- Mini-ITX motherboards - Just 15.8L in size
- Dual Tempered glass side panels
- Triple-Slot Vertical GPU Support with mount and PCI-E 3.1 Riser Cable included
Mer om produktet
Built to the same excellent standards as the Kolink Rocket, the Rocket Heavy packs in some serious hardware support, but remains just 15.8L in size. With space for a triple slot vertically mounted 340mm VGA card using the supplied mount & PCI-E riser cable, a 240mm radiator and SFX-L PSU s as standard, the Rocket Heavy is a small chassis with big features.
The Features of the Kolink Rocket Heavy at a Glance:
• Front aluminium panel with hexagon cutouts for ventilation & dust filter
• Dual Tempered glass side panels for complete view of the interior
• Designed for Mini-ITX motherboards - Just 15.8L in size.
• Triple-Slot Vertical GPU Support with mount and PCI-E 3.1 Riser Cable
• Support for radiators up to 240mm on the aluminium top panel
• Top mounted 120mm PWM fan
• I/O Panel with 1 x USB3.2 Type-C, 2x USB 3.0 & 2x USB 2.0, HD Audio
• Graphics cards up to 340 mm supported, CPU coolers up to 85 mm, SFX-L PSUs
Kolink Rocket Heavy - Enthusiast elegance
The Rocket Heavy has been designed to offer a small form factor chassis that still allows for an impressive setup. Both the vented front and top panel are made from aluminium, with an attractive hexagonal cutout design on the front, and a more traditional vented design on the top panel, where a 240mm radiator/AIO can be installed. A 120mm PWM fan is also included on the top panel as standard.
Aside from the pre-installed fan, users are also free to install another 120mm fan on the roof, along with a 120mm fan next to the motherboard mounts (a slim 120mm fan is recommended here if using a long graphics card). There is tempered glass on both sides of the case, showcasing your setup from most angles with style.
The Kolink Rocket Heavy: Hardware focussed
The interior is black powder coated as standard, and features enough room for an impressive setup despite only being 15.8L in size. There s room for a 340mm graphics card, which is mounted vertically, and can up to triple slot in thickness. The supplied GPU mount and 150mm PCI-E 3.1 Riser Cable allows you to mount your card quickly and efficiently, whilst connecting to your Mini-ITX motherboard is a breeze. CPU Coolers up to 85mm are supported although this case really lends itself to using an AIO setup.
In terms of PSU support, the Rocket Heavy supports SFX and SFX-L form factor power supplies as standard. Additionally, the I/O panel located at the front possesses a USB 3.2 Type-C port, two USB 3.0 Type-A ports as well as a pair of USB 2.0 ports.
Specification:
Dimensions: 180 x 265 x 350 mm (W x H x D)
Box Dimensions: 240 x 305 x 405 mm (W x H x D)
Material: Aluminium, Steel, tempered glass
Packaging: EPE Foam
Weight: approx. 4.75 kg
Colour: Gunmetal Grey
Form factor: Mini-ITX
Total fans possible:
2x 120 mm (Roof)
1x 120 mm (Motherboard Panel)
1x 120 mm (Roof) PWM
Radiator Mountings:
1x 240 mm (Top)
Filter: Roof, Front
Drive bays:
2x 2.5″ (internal)
1x 3.5″ (internal)
PSU: 1x Standard SFX/SFX-L (optional)
Expansion slots: 3
I/O-Panel:
2x USB 2.0 (internal connection)
2x USB 3.0 (internal connection)
1x USB 3.2 Type-C (internal connection)
1x Audio In/Out
1x Power Switch
Max GPU length: 340 mm
Max CPU cooler height: 85 mm
The Features of the Kolink Rocket Heavy at a Glance:
• Front aluminium panel with hexagon cutouts for ventilation & dust filter
• Dual Tempered glass side panels for complete view of the interior
• Designed for Mini-ITX motherboards - Just 15.8L in size.
• Triple-Slot Vertical GPU Support with mount and PCI-E 3.1 Riser Cable
• Support for radiators up to 240mm on the aluminium top panel
• Top mounted 120mm PWM fan
• I/O Panel with 1 x USB3.2 Type-C, 2x USB 3.0 & 2x USB 2.0, HD Audio
• Graphics cards up to 340 mm supported, CPU coolers up to 85 mm, SFX-L PSUs
Kolink Rocket Heavy - Enthusiast elegance
The Rocket Heavy has been designed to offer a small form factor chassis that still allows for an impressive setup. Both the vented front and top panel are made from aluminium, with an attractive hexagonal cutout design on the front, and a more traditional vented design on the top panel, where a 240mm radiator/AIO can be installed. A 120mm PWM fan is also included on the top panel as standard.
Aside from the pre-installed fan, users are also free to install another 120mm fan on the roof, along with a 120mm fan next to the motherboard mounts (a slim 120mm fan is recommended here if using a long graphics card). There is tempered glass on both sides of the case, showcasing your setup from most angles with style.
The Kolink Rocket Heavy: Hardware focussed
The interior is black powder coated as standard, and features enough room for an impressive setup despite only being 15.8L in size. There s room for a 340mm graphics card, which is mounted vertically, and can up to triple slot in thickness. The supplied GPU mount and 150mm PCI-E 3.1 Riser Cable allows you to mount your card quickly and efficiently, whilst connecting to your Mini-ITX motherboard is a breeze. CPU Coolers up to 85mm are supported although this case really lends itself to using an AIO setup.
In terms of PSU support, the Rocket Heavy supports SFX and SFX-L form factor power supplies as standard. Additionally, the I/O panel located at the front possesses a USB 3.2 Type-C port, two USB 3.0 Type-A ports as well as a pair of USB 2.0 ports.
Specification:
Dimensions: 180 x 265 x 350 mm (W x H x D)
Box Dimensions: 240 x 305 x 405 mm (W x H x D)
Material: Aluminium, Steel, tempered glass
Packaging: EPE Foam
Weight: approx. 4.75 kg
Colour: Gunmetal Grey
Form factor: Mini-ITX
Total fans possible:
2x 120 mm (Roof)
1x 120 mm (Motherboard Panel)
1x 120 mm (Roof) PWM
Radiator Mountings:
1x 240 mm (Top)
Filter: Roof, Front
Drive bays:
2x 2.5″ (internal)
1x 3.5″ (internal)
PSU: 1x Standard SFX/SFX-L (optional)
Expansion slots: 3
I/O-Panel:
2x USB 2.0 (internal connection)
2x USB 3.0 (internal connection)
1x USB 3.2 Type-C (internal connection)
1x Audio In/Out
1x Power Switch
Max GPU length: 340 mm
Max CPU cooler height: 85 mm
Spesifikasjoner
Mål og vekt
Høyde (cm) 26.5 Bredde (cm) 18 Dybde (cm) 35 Vekt (kg) 4.75 Høyde (ink. emballasje) 0,0 mm Bredde (ink. emballasje) 0,0 mm Dybde (ink. emballasje) 0,0 mm Vekt ink. emballasje 100,0 g Nøkkelspesifikasjon
Form ITX Støttende hovedkort Mini-ITX Internal 3.5" drive bays 1 Internal 2.5" drive bays 2 Inkluderte vifter Ja Maks grafikkortlengde (mm) 340mm Maks CPU kjølehøyde (mm) 85 mm Modellbeskrivelse
Produkttype Kabinett Modellnavn ROCKET HEAVY Form ITX Optimalisert for gaming Ja Strekkode (EAN) 5999094003569 Leverandørens artikkelnummer 6904633 Hovedkort
Støttende hovedkort Mini-ITX Utvidelsesport
Internal 3.5" drive bays 1 Internal 2.5" drive bays 2 Ekspansjonsenhet 2x 2.5" (internal) Avkjøling (5045)
Antall vifter 1 Viftehøyde (mm) 120 Viftedimensjoner 120 Inkluderte vifter Ja Grafikk
Maks grafikkortlengde (mm) 340mm Prosessor
Maks CPU kjølehøyde (mm) 85 mm Design, form og plassering
Farge Sort
