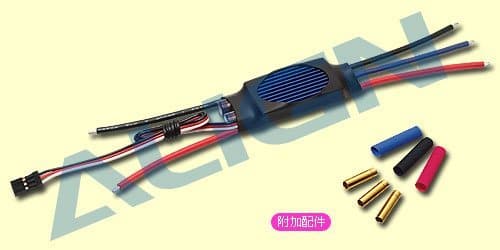

HES35P01T 35A Brushless ESC(Governer Mode)

35A fartsregulator for T-Rex 450 helikopter og andre lignende helikopter.BEC output voltage(5-6V) to show great performance on the torque & speed of servo.Three programmable throttle speed settings to support quick throttle response.Govener Mode(governor speed controller, slow down system).Small and compact PCB design for ease of installation.Large heatsink for great thermal performance.High compatibility to work with 98pst brushless motors in the market.Ultra smooth motor start design to run with all kinds of brushless motors.The power inlet adapts Japanese made Low ESR capacitor in order to provide stable power source.T BEC power outlet adapts a Japanese made specialty polymer aluminum electrolytic capacitor. It porvides better noise filtering capability than other BL ESC in the market, and moreover to give more stable performance of R/C receiver and BEC.Users can use the transmitter to operate the motor setting by Super stylized CPU.
Continuous current:35Amps
Surge current:45Amps for 15seconds
Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
Supporting maximum RPM:2polesup to 190,000rpm
Supporting input voltage:5.5V-16.8V
Supporting battery types: Li-ion/ Li-poly 2-4 cells, Ni-Mh 6-12 cells
BEC output: 5-6V,current 3A
Size:58X22X11mm
Weight:30g
