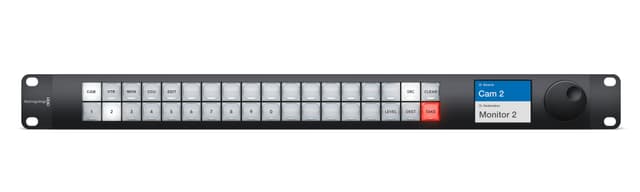

Blackmagic Videohub Master Control Pro

Når du trenger tilgang til hele ruteren uten å ofre hastigheten, lar Videohub Master Control Pro deg bla i ruterens kilder og destinasjoner med den enkle å bruke  eller via direkte knappinnføring. Du kan til og med se alle ruter på LCD-skjermen. Strøm via DC eller Ethernet-tilkobling

Ethernet

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No  power over ethernet  on Ethernet  Out.

RS-422

In and Out (for future  implementation)

Computer Interface

USB-C for configuration and software  updates.

Power

100 - 240 AC

Hardware Control

21 assignable buttons with scroll wheel for fast selection of source and destination.  LCD information  screen.

Internal Software

Internal Software upgrade via included firmware updater application via USB or  ethernet.

Operating Systems

Mac 10.13 High Sierra,
Mac 10.14 Mojave or  later.

Windows 10.

Physical Installation

1 rack unit size. Less than  3 inches deep.

Button Configuration

Included free for Windows™ and Mac™ via  USB 2.0high speed (480Mb/s)  interface.

Power Requirements

Power Fail Requirements

Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later  recall.

Power Supply

Internal 100 - 240 V AC

Physical Specifications

Environmental Specifications

Operating temperature

0° to 40°  C (32° to 104°  F)

Storage temperature

-20° to 45°  C (-4° to 113°  F)

Relative Humidity

0% to 90% non-condensing

What's Included

Videohub Master Control Pro

Warranty

12 Months Limited Warranty.
