Avansert 8K HDMI-Monitorering
med dobbel scope overlegg, HDR,
33 pungt 3D LUT og skjermkalibrering.

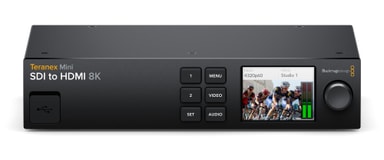

Teranex Mini SDI til HDMI 8K HDR er en avansert 8K for storskjerm-TV og videoprojektor. I motsetning til grunnleggende omformere kan Teranex Mini bruke tredjeparts kalibreringsprober for nøyaktig justering av tilkoblede skjermer for presis farge. Det er 2 skjermbilder som kan velges mellom WFM, Parade, Vector og Histogram. Teranex Mini SDI til HDMI 8K HDR er perfekt for filmstudier og kringkastere som trenger profesjonell, men rimelig fargekorrigering. Du får også en elegant design med fargeskjerm for overvåking og kontroll av innstillinger.

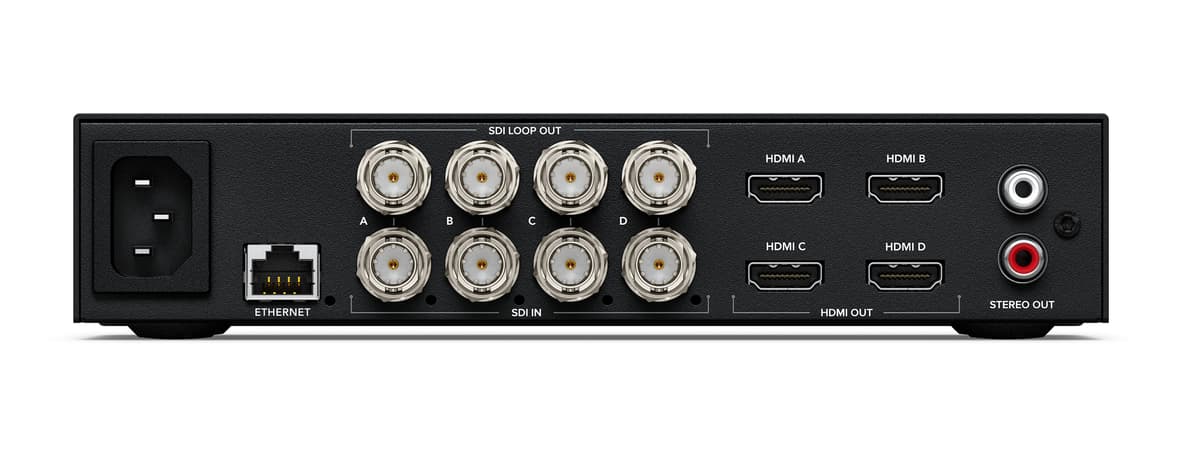

4 x 12G-SDI HD/2K/4K/8K auto switching.
4 x 12G-SDI loop output.
4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link.
2 channels analog audio via RCA connectors.
16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs.
8 channels embedded on the HDMI
1.5G, 3G, 6G, 12G, 2SI Dual Link 12G-SDI, 2SI Quad Link 12G-SDI, Square Division Quad Link 12G-SDI.
USB-C or Ethernet.
Yes
None
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
4:2:2 and 4:4:4
Television standard sample rate of 48 kHz and 24-bit.
4:2:2 and 4:4:4
YUV and RGB.
None
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
REC 709, REC 2020
YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUT's can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
Waveform, RGB/YUV Parade, Vector, Histogram
Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules.
